category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/HO 150.pdf
manufacturer:
Vestil
mpn:
PE-3066
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

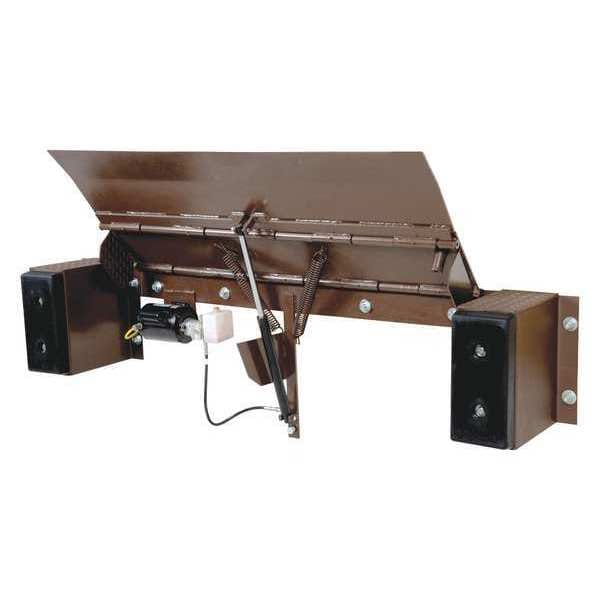

Vestil - PE-3066
Edge of Dock Leveler, Dock Leveler Lift Mechanism Electric Hydraulic, 30,000 lb Load Capacity, Service Height Range 5 in Above or Below Dock, Overall Width 93 in, Usable Width 66 in, Bumper Size 2 in x 8 in x 18 in, Motor HP 3/4 hp, Voltage 115 V, Includes Control Box, Cylinder, Hydraulic Lines, Motor, Oil, Pump, Open Depth 29 13/16 in, Closed Depth 17 1/2 in
Additional Information
Overall Width93 in
Usable Width66 in
Service Height Range5 in Above or Below Dock
Bumper Size2 in x 8 in x 18 in
Open Depth29 13/16 in
Closed Depth17 1/2 in
Opening Depth29 7/8 in
Bumper Depth2 in
Bumper Height18 in
Service Height5 in
Bumper Width8 in
Dock Leveler ItemEdge of Dock Leveler
Dock Leveler Lift MechanismElectric Hydraulic
Load Capacity30,000 lb
Lift MechanismElectric Hydraulic
ItemEdge of Dock Leveler
IncludesUnit comes complete with motor, pump, control box, cylinder, lines and oil
Voltage115 V
Motor HP3/4 hp
Load Capacity - Maximum30,000 lb
Horsepower3/4 hp
Bumper MaterialRubber
Nameplate Voltage115V
