category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_PM2xxxxManualxxxxAssemblyxxxx71c401.pdf
manufacturer:
Vestil
mpn:
PM2-2044-SLP
subcategory:
Carts / Trucks / & Dollies
type:
Pallet Jacks & Pallet Tilters
Data Sheet Product Description

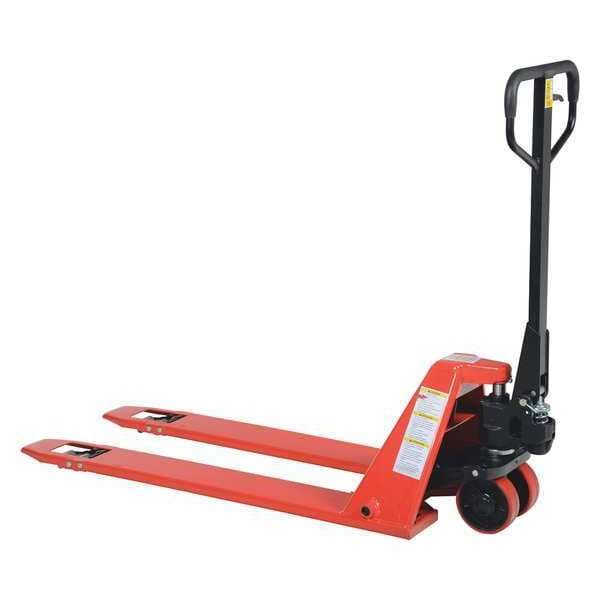

Vestil - PM2-2044-SLP
2,200 lb, Fork Style Narrow, Fork Type Fixed, Fork Length 44 in, Fork Width 6 1/2 in, Width Across Forks 21 1/4 in, Width Between Forks 8 1/4 in, Overall Length 60 in, Overall Width 21 in, Overall Height 48 in, Frame Material Steel, Minimum Lifting Height 1 1/2 in, Maximum Lifting Height 3 3/8 in, Fork LxW 44 in x 6 1/2 in, Overall LxWxH 60 in x 21 in x 48 in
Additional Information
Overall Height48"
Overall Length60 in
Overall Width21"
Platform Length60"
Fork Length44"
Width Between Forks8 1/4 in
Fork Height Raised3-3/8"
Fork Width6-1/2"
Width Across Forks21"
Fork Height Lowered1-1/2"
Steer Wheel Diameter6 in
Load Wheel Width2 1/4 in
Minimum Lifting Height1 1/2 in
Load Wheel Diameter1 1/2 in
Steer Wheel Width2 in
Handle Height48 in
Overall LxWxH60 in x 21 in x 48 in
Maximum Lifting Height3 3/8 in
Raised Height3-3/8"
Lowered Height1-1/2"
Material Steel
Color Red
Load Capacity 2200 lb.
Item Super Low Pallet Truck
Wheel Type Tread on Core
Handle Type Ergonomic
Assembled Partially Assembled
Includes (1) Steel Super Low Pallet Truck
Features Fingertip Lever Switch
Wheel Base 60 in
Steering Arc 205 Degrees
Finish Baked In Power Coated
Frame Material Steel
Pallet Jack Operation Manual
Frame Finish Powder Coated
For Pallet Type Open/Closed
Load Wheel Bearing Type Roller
Weight 290 lb
Operation Manual
Handle Material Rubber Cushioned
Standards OSHA
Number of Batteries 0
Fork Type Fixed
Steer Wheel Bearing Type Roller
Load Wheel/Tread Material Steel
Steer Wheel/Tread Material Polyurethane
Fork Style Narrow
