category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_PM2xx3344xxSLPxxxxMANUALxxfff4ae.pdf
manufacturer:
Vestil
mpn:
PM2-3344-SLP
subcategory:
Carts / Trucks / & Dollies
type:
Pallet Jacks & Pallet Tilters
Data Sheet Product Description

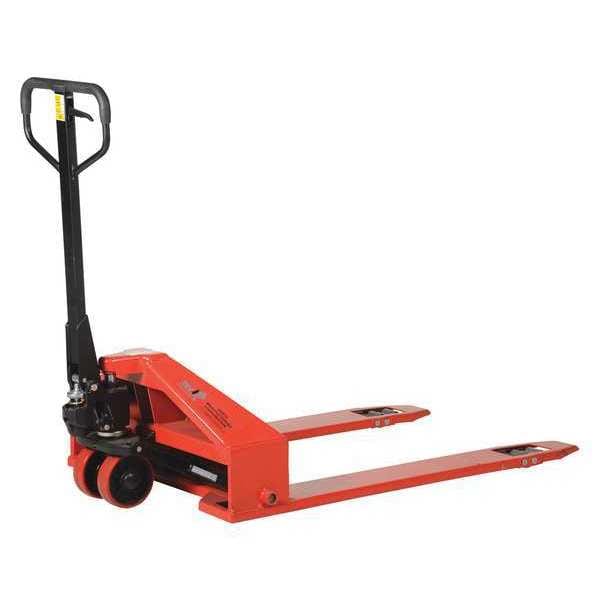

Vestil - PM2-3344-SLP
2,200 lb, Fork Style 4-Way, Fork Type Fixed, Fork Length 44 in, Fork Width 6 1/2 in, Width Across Forks 33 1/4 in, Width Between Forks 20 1/4 in, Overall Length 63 1/2 in, Overall Width 33 in, Overall Height 48 in, Frame Material Steel, Minimum Lifting Height 1 1/2 in, Maximum Lifting Height 3 3/8 in, Fork LxW 44 in x 6 1/2 in, Overall LxWxH 63 1/2 in x 33 in x 48 in
Additional Information
Overall Height48"
Overall Length63 1/2 in
Overall Width33"
Platform Length63.5"
Fork Width6-1/2 in
Width Between Forks20 1/4 in
Width Across Forks33 1/4 in
Fork Length44in
Load Wheel Diameter1 1/2 in
Maximum Lifting Height3 3/8 in
Steer Wheel Width2 in
Load Wheel Width2 1/4 in
Handle Height48 in
Minimum Lifting Height1 1/2 in
Overall LxWxH63 1/2 in x 33 in x 48 in
Steer Wheel Diameter6 in
Raised Height3-3/8"
Lowered Height1-1/2"
Material Steel
Color Red
Load Capacity 2200 lb
Item Super Low Pallet Truck
Wheel Type Tread on Core
Handle Type Ergonomic
Assembled Partially Assembled
Steering Arc 205 Degrees
Features Fingertip Lever Switch
Frame Material Steel
Wheel Base 63 1/2 in
Includes (1) Steel Super Low Pallet Truck
Frame Finish Powder Coated
Steer Wheel/Tread Material Polyurethane
Load Wheel/Tread Material Steel
Fork Type Fixed
For Pallet Type Open/Closed
Number of Batteries 0
Handle Material Rubber Cushioned
Standards OSHA
Fork Style 4-Way
Weight 328 lb
Operation Manual
