category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_PM5xx2748xxxxMANUALxx190fde.pdf
manufacturer:
Vestil
mpn:
PM5-2748-GYSG
subcategory:
Carts / Trucks / & Dollies
type:
Pallet Jacks & Pallet Tilters
Data Sheet Product Description

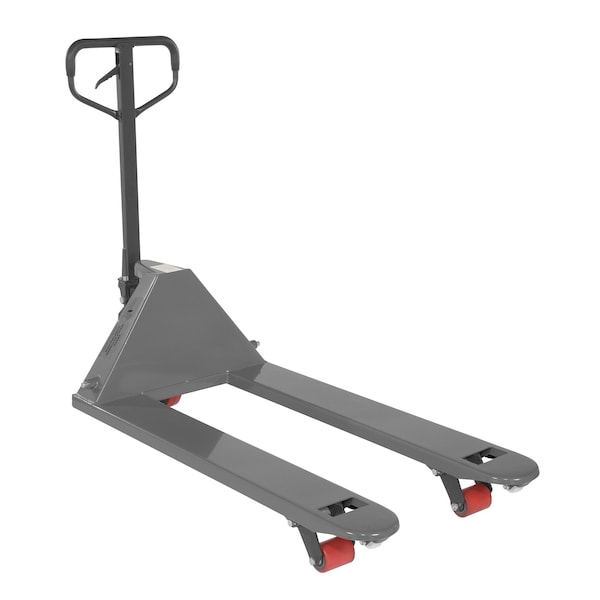

Vestil - PM5-2748-GYSG
The Full Featured Pallet Truck is an economical way for one person to move heavy pallet loads without the use of a fork truck! Includes two (2) articulating steering wheels and two (2) front load rollers. Reinforced triple-formed steel forks provide twice the strength of standard single-formed forks. The unit is equipped with internally mounted solid steel adjustable push rods. The spring loaded handle automatically returns to vertical position when not in use. Hydraulic pump design facilitates easy-access seal replacement.
Additional Information
Overall Height49
Overall Length61.1875
Overall Width27
Platform Length61.1875"
Fork Length48 in
Fork Width8 in
Lifting Height Max.7.75 in
Height49
Depth61.1875
Size61.1875 x 27 x 49
Width27
Length61.1875
MaterialSteel
ColorGray Semi Gloss
Load Capacity5500 lb
AssembledNo
FeaturesErgonomic design requires minimal pulling force when fully loaded. Steering wheels include bearing dust covers for added life. Nose wheels are located on the front edge of each fork to assist in clean pallet entrance and exit. Chrome-plated hydraulic pump piston for long seal life
Handle MaterialSteel
Wheel MaterialPolyurethane
Includes(1) Steel Full Featured Pallet Truck
Power SourceHand
ApplicationThe full featured pallet truck is an economical way for one person to move heavy pallet loads without the use of a fork truck!
Weight185
