category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/HO 150.pdf
manufacturer:
Vestil
mpn:
PP-2572-36
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

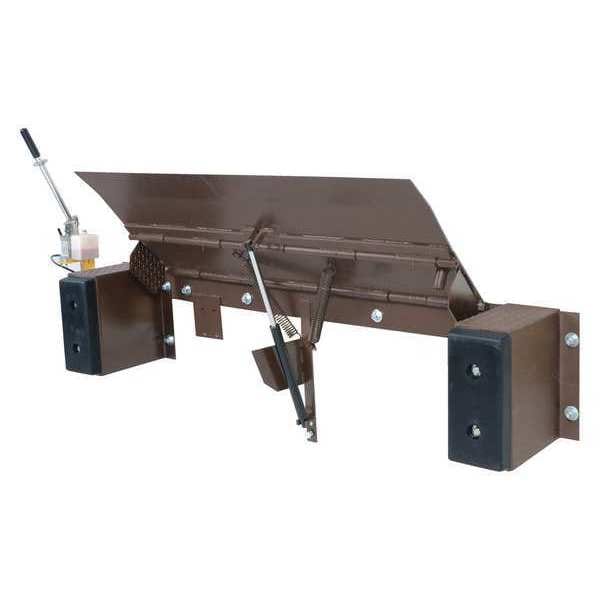

Vestil - PP-2572-36
Edge of Dock Leveler, Dock Leveler Lift Mechanism Hand Pump Hydraulic, 25,000 lb Load Capacity, Service Height Range 5 in Above or Below Dock, Overall Width 18 in, Usable Width 72 in, Bumper Size 2 in x 8 in x 18 in, Includes Control Box, Cylinder, Hydraulic Lines, Motor, Oil, Pump, Open Depth 36 5/8 in, Closed Depth 26 3/4 in
Additional Information
Overall Width18 in
Usable Width72 in
Service Height Range5 in Above or Below Dock
Bumper Size2 in x 8 in x 18 in
Open Depth36 5/8 in
Closed Depth26 3/4 in
Bumper Depth2 in
Bumper Width8 in
Opening Depth36 5/8 in
Service Height5 in
Bumper Height18 in
Dock Leveler ItemEdge of Dock Leveler
Dock Leveler Lift MechanismHand Pump Hydraulic
Load Capacity25,000 lb
ItemEdge of Dock Leveler
IncludesHand pump, wall-mount brackets, cylinder, 15 feet of hydraulic line and oil
Lift MechanismHand Pump Hydraulic
Load Capacity - Maximum25,000 lb
Bumper MaterialRubber
Nameplate Voltage115V
