category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/2d52553d-4cb8-42a6-808b-e4c10713fb32.pdf
manufacturer:
Vestil
mpn:
SBM-25
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

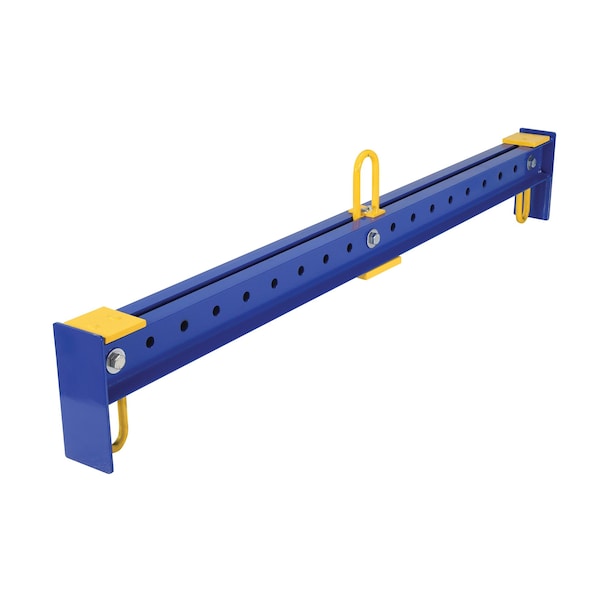

Vestil - SBM-25
Adjustable Spreader Beam,2500 lb.,78 In.
Additional Information
Overall Length78 in.
Overall Width5 in.
Upper Bail Width2-1/2 x 5 in
Bail Opening WidthUpper: 2-1/2 in. / Lower: 1-1/2 in.
Width5
Bail Opening HeightUpper: 4-1/2 in. / Lower: 4-1/2 in.
Overall Height16-1/2 in.
Lifting Height Max.14-3/4"
ItemAdjustable Spreader Beam,2500 lb.,78"
MaterialSteel
ColorBlue
Max. Spread72"
Min. Spread8"
IncludesIncludes two lower bails and one upper bail standard for added versatility
OperationOverhead Lifting Devices
FinishPowder Coat
For Use with TrolleyMaterial Handling
Load Capacity2,500 lb.
StandardsASME B30.20-1993
Product TypeAdjustable Spreader Beam,2500 lb.,78"
FeaturesDesigned to lift and move uneven and awkward loads; Complies with ASME B30.20-1993 standards; Includes two lower bails and one upper bail standard for added versatility; Welded steel construction for heavy duty performance
