category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_SBMxxBFBxx100xx6xx91e6a8.pdf
manufacturer:
Vestil
mpn:
SBM-BFB-100-6
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

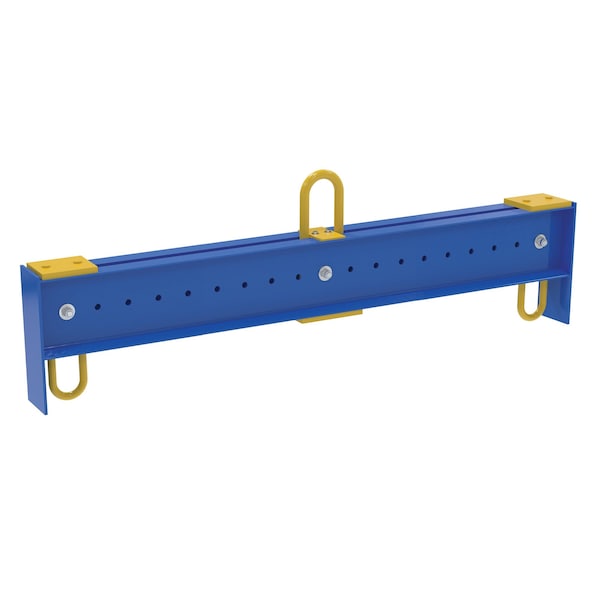

Vestil - SBM-BFB-100-6
An adjustable spreader beam model lifts uneven loads and keep them level with increased safety. Includes one upper bail and two specialty designed bail/sling holders. Bails are adjustable in 4'' increments. The bails slide between two C-channels. Meets ASME B30.20-1993 standard. Baked-in powder coated toughness. Polyester lifting slings sold separately.
- • Designed to lift and move uneven and awkward loads
- • Welded steel construction for heavy duty performance
- • Adjustable bail to fit a variety of sizes
- • Large capacity for use with items both large and small
Additional Information
Overall Length80.5 in
Usable Lower Bail Width3 in
Usable Upper Bail Width4 in
Overall Height25.5 in
Overall Width6.5 in
Usable Upper Bail Length7-1/2 in
Usable Lower Bail Length5-3/4 in
MaterialSteel
ColorBlue
Max. Spread6 ft
Min. Spread24 in
Capacity10000 lb
Headroom25-1/2 in
IncludesSteel Adjustable Spreader Beam
StandardsASME B30.20-1993
FinishPowder Coated
FeaturesWelded steel construction for heavy duty performance
