category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/b0b1caa5-1b73-4686-9a99-6eeca8529ba3.PDF
manufacturer:
Vestil
mpn:
TS-15-6060
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description
Vestil - TS-15-6060

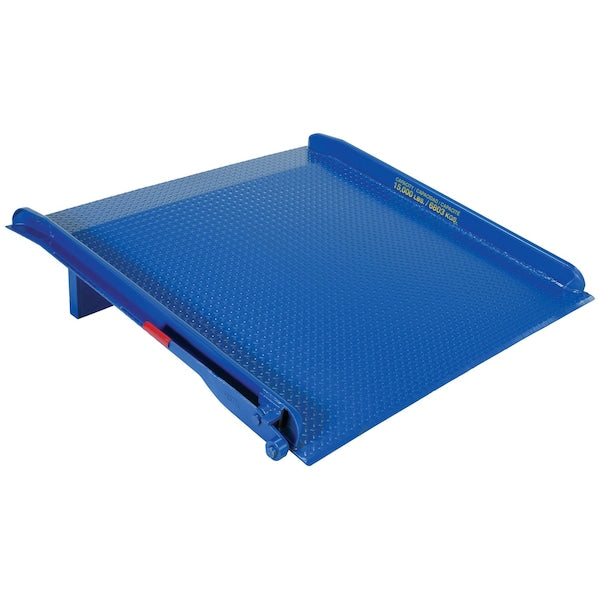

The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.
Additional Information
Overall Length59-13/16 in.
Overall Height16-3/4 in.
Overall Width62-9/16 in.
Length59.8125
Thickness3/8 in.
Overall Depth59-13/16 in.
Height16.75
Depth59.8125
Width62.5625
Size59.8125 x 62.5625 x 16.75
Usable Width55-1/2 in.
Dock Shelter ItemSteel Truck Dockboards
Item60x60 Steel Truck Dockboard 15K
Load Capacity15,000 lb.
MaterialSteel
IncludesStandard with Lever Lift, (2) Safety Curbs, and (2) Lockin.g Legs
ColorBlue
Weight448
StandardsOSHA : 1910.30 (a); ANSI : MH 30.2
FinishPainted
