category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/b0b1caa5-1b73-4686-9a99-6eeca8529ba3.PDF
manufacturer:
Vestil
mpn:
TS-20-7260
subcategory:
Dock & Warehouse Equipment
type:
Ramps
Data Sheet Product Description

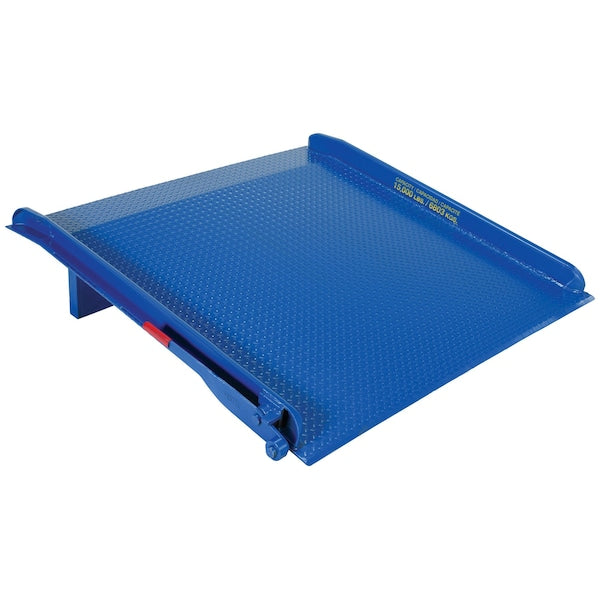

Vestil - TS-20-7260
The steel truck dock board is constructed of high strength (55,000 psi) steel for long life. Deck is diamond plated for safe, efficient use. Locking legs minimize ramp movement and are uneven to allow the dock board to sit canted for easier floor pickup by fork trucks when not in use. Standard with lever lift for quick portability with fork truck. Legs are located 12" from the edge of the dock board. Manufactured in compliance with OSHA. Optional accessories: lifting chains, span locks, span pins/holes and removable pickup loops.
Additional Information
Overall Length59-13/16 in.
Overall Height17-7/8 in.
Overall Width75-1/16 in.
Height17.875
Usable Width67-3/4 in.
Width75.0625
Depth59.8125
Length59.8125
Size59.8125 x 75.0625 x 17.875
Thickness1/2 in.
Overall Depth59-13/16 in.
Item72x60 Steel Truck Dockboard 20K
Dock Shelter ItemSteel Truck Dockboards
Load Capacity20,000 lb.
MaterialSteel
IncludesStandard with Lever Lift, (2) Safety Curbs, and (2) Lockin.g Legs
ColorBlue
Weight655
FinishPainted
StandardsOSHA : 1910.30 (a); ANSI : MH 30.2
