category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Vestil Manufacturing Corp_UNIxxxxMANUALxx129581.pdf
manufacturer:
Vestil
mpn:
UNI-2448-2-YEL-230-1
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Tables
Data Sheet Product Description

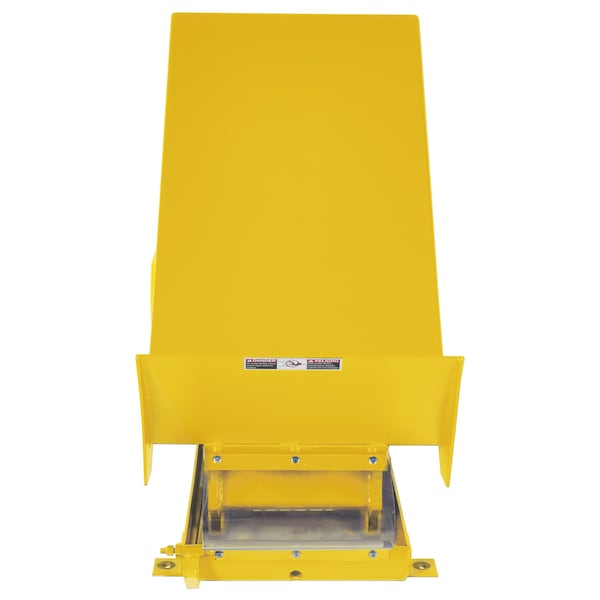

Vestil - UNI-2448-2-YEL-230-1
Lift Table,2K,24x48,Yellow,230V,1 Phase
Additional Information
Lifting Height Min.8 in
Platform Length48 in
Overall Height20 in.
Overall Length51-1/2 in.
Overall Width24 in.
Platform Width24 in.
Platform Depth48 in.
Max. Work Height8 in.
Lift Table Item Single Scissor Lift & Tilt Tables
Mobile/Stationary Stationary
Lift Mechanism Hydraulic
Lift Mobility AC Powered
Lift Control Hand Control
Lift Table Platform Style Solid
Load Capacity 2000 lbs
Item Lift Table 24x48 230V 1PH 2K Yellow
HP 2 hp
Voltage 230V
Phase Single Phase
Frame Material Steel
Includes Come's with a high lip, selector pedal, two-button handheld control, integrated maintenance lock, pressure plated pump, pressure compensated flow valve, lowering valve, independent oil return, and an adjustable upward travel switch.
Color Yellow
Material Steel
Power Source Electric - Corded
Tilting Deg. 40°
