category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_VANxxJxxxxMANUALxx91edc8.pdf
manufacturer:
Vestil
mpn:
VAN-J-DC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

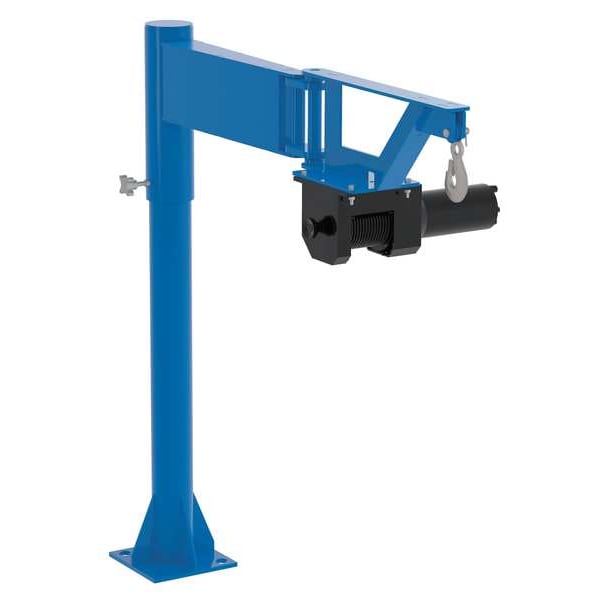

Vestil - VAN-J-DC
Davit Crane, Maximum Lifting Capacity 400 lb, Minimum Lifting Height 3.3 ft, Maximum Lifting Height 3 ft, Boom Length Adjustability Fixed, Number of Boom Length Positions Not Applicable, Minimum Adjustable Boom Length Not Applicable, Maximum Adjustable Boom Length Not Applicable, Boom Weight 127 lb, Color Blue, Compatible Base Grainger Part Number Not Applicable, Compatible Base Manufacturer Part Number Not Applicable, Control Type Wired Control
Additional Information
Mast Diameter3.5 in
Overall Height46.1 in
Overall Width12.3 in
Mfr. Warranty Length90 day
Maximum Lifting Height3 ft
Overall Fixed Boom Length39.8 in
Minimum Lifting Height3.3 ft
Overall Depth45.8 in
Height Under Boom31.4 in
Boom Length AdjustabilityFixed
Item Davit Crane
Capacity 400 lb
Material Welded Steel
Reach 0 in to 38.5 in
Lift Range 0 in to 120 in
Finish Powder Coated
Color Blue
Operation Mode 12V DC
Includes 12 V DC Winch, Base, Cable Assembly, Hand Pendant Control
Swivel Angle 360 Degrees
Voltage 12V DC
Overall Weight 127 lb
Maximum Lifting Capacity 400 lb
Control Type Wired Control
Body Material Steel
Power Source Electric
Included Components Winch, 3/16 in x 46 ft Steel Cable, Controller, Pedestal Mount Base
Max Extended Arm Load Capacity 400 lb
Mobility Stationary
Boom Weight 127 lb
Body Finish Painted
Operating Voltage 12V DC
