category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_WPxxxxMANUALxxc6671c.pdf
manufacturer:
Vestil
mpn:
WTJ-20-4-AC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

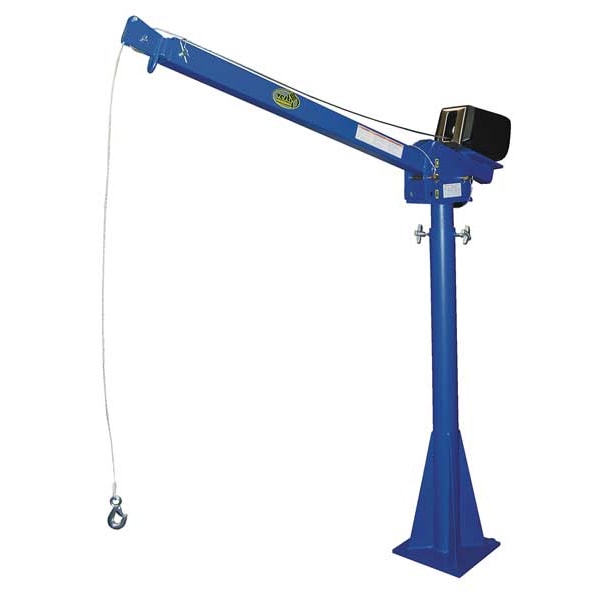

Vestil - WTJ-20-4-AC
Davit Crane, Maximum Lifting Capacity 2,000 lb, Minimum Lifting Height 4.3 ft, Maximum Lifting Height 7.3 ft, Boom Length Adjustability Expandable, Number of Boom Length Positions 4, Minimum Adjustable Boom Length 51.3 in, Maximum Adjustable Boom Length 87.3 ft, Boom Weight 374 lb, Color Blue, Compatible Base Grainger Part Number Not Applicable, Compatible Base Manufacturer Part Number Not Applicable, Control Type Wired Control
Additional Information
Mast Diameter4 in
Overall Width12 in
Overall Height70.1 in
Maximum Lifting Height7.3 ft
Min. Adjustable Boom Length51.3 in
Overall Depth65.4 in
Mfr. Warranty Length90 day
Height Under Boom59.5 in
Minimum Lifting Height4.3 ft
Boom Length AdjustabilityExpandable
No. of Boom Length Positions4
Max. Adjustable Boom Length87.3 ft
Item Davit Crane
Capacity 2,000 lb
Reach 51.25 in to 87.25 in
Material Welded Steel
Finish Powder Coated
Lift Range 59-1/2 in to 106-1/2 in
Color Blue
Operation Mode 115V AC
Includes 115 V AC Winch, Base, Cable Assembly, Fingertip Toggle Switch
Swivel Angle 360 Degrees
Standards ANSI, OSHA
Voltage 115V AC
Boom Weight 374 lb
Mobility Stationary
Body Material Steel
Body Finish Powder Coated
Included Components Winch, 7/32 in x 25 ft Steel Cable, Pedestal Mount Base
Max Extended Arm Load Capacity 600 lb
Control Type Wired Control
Overall Weight 255 lb
Maximum Lifting Capacity 2,000 lb
Power Source Electric
Operating Voltage 115V AC
