category:
Material Handling
country_of_origin:
USA
data_sheet:
https://www.zoro.com/static/cms/enhanced_pdf/Grainger_WTJxxExxxxMANUALxx16d75a.pdf
manufacturer:
Vestil
mpn:
WTJ-E-15-3-DC
subcategory:
Lifting / Pulling & Positioning
type:
Lifting Equipment
Data Sheet Product Description

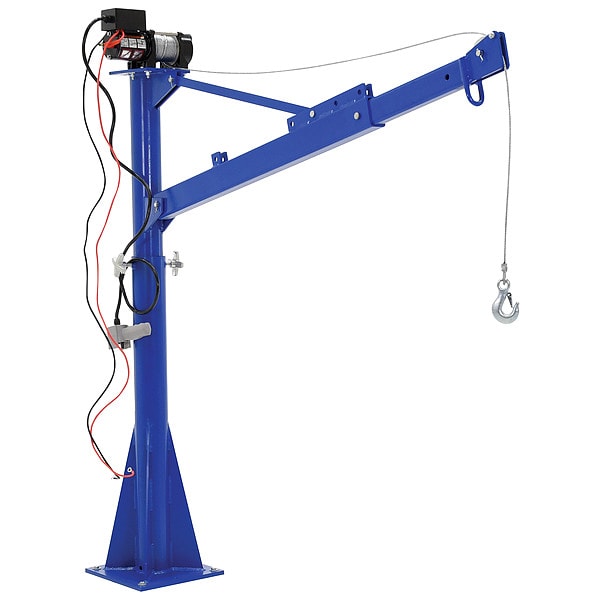

Vestil - WTJ-E-15-3-DC
Davit Crane, Maximum Lifting Capacity 1,500 lb, Minimum Lifting Height 3.6 ft, Maximum Lifting Height 5.6 ft, Boom Length Adjustability Expandable, Number of Boom Length Positions 4, Minimum Adjustable Boom Length 43.1 in, Maximum Adjustable Boom Length 66.8 in, Boom Weight 200 lb, Color Blue, Compatible Base Grainger Part Number Not Applicable, Compatible Base Manufacturer Part Number Not Applicable, Control Type Wired Control
Additional Information
Mast Diameter4 in
Overall Height65.7 in
Overall Width13.5 in
No. of Boom Length Positions4
Height Under Boom43.1 in
Boom Length AdjustabilityExpandable
Mfr. Warranty Length90 day
Max. Adjustable Boom Length66.8 in
Min. Adjustable Boom Length43.1 in
Overall Depth51.1 in
Minimum Lifting Height3.6 ft
Maximum Lifting Height5.6 ft
Item Davit Crane
Capacity 1,500 lb
Reach 43.06 in to 66.75 in
Material Welded Steel
Lift Range 47-1/8 in to 73-5/16 in
Finish Powder Coated
Color Blue
Operation Mode 12V DC
Swivel Angle 360 Degrees
Includes 12 V DC Winch, Base, Cable Assembly, Hand Pendant Control
Voltage 12V DC
Standards ANSI, OSHA
Overall Weight 200 lb
Body Finish Powder Coated
Maximum Lifting Capacity 1,500 lb
Max Extended Arm Load Capacity 1,100 lb
Control Type Wired Control
Included Components Winch, 3/16 in x 46 ft Steel Cable, Controller, Pedestal Mount Base
Mobility Stationary
Body Material Steel
Boom Weight 200 lb
Power Source Electric
Operating Voltage 12V DC
