category:
Definite Purpose
country_of_origin:
TW
manufacturer:
Weg
mpn:
00636OS1XCD182/4Y
subcategory:
Compressor Duty
weight:
49.6
Product Description

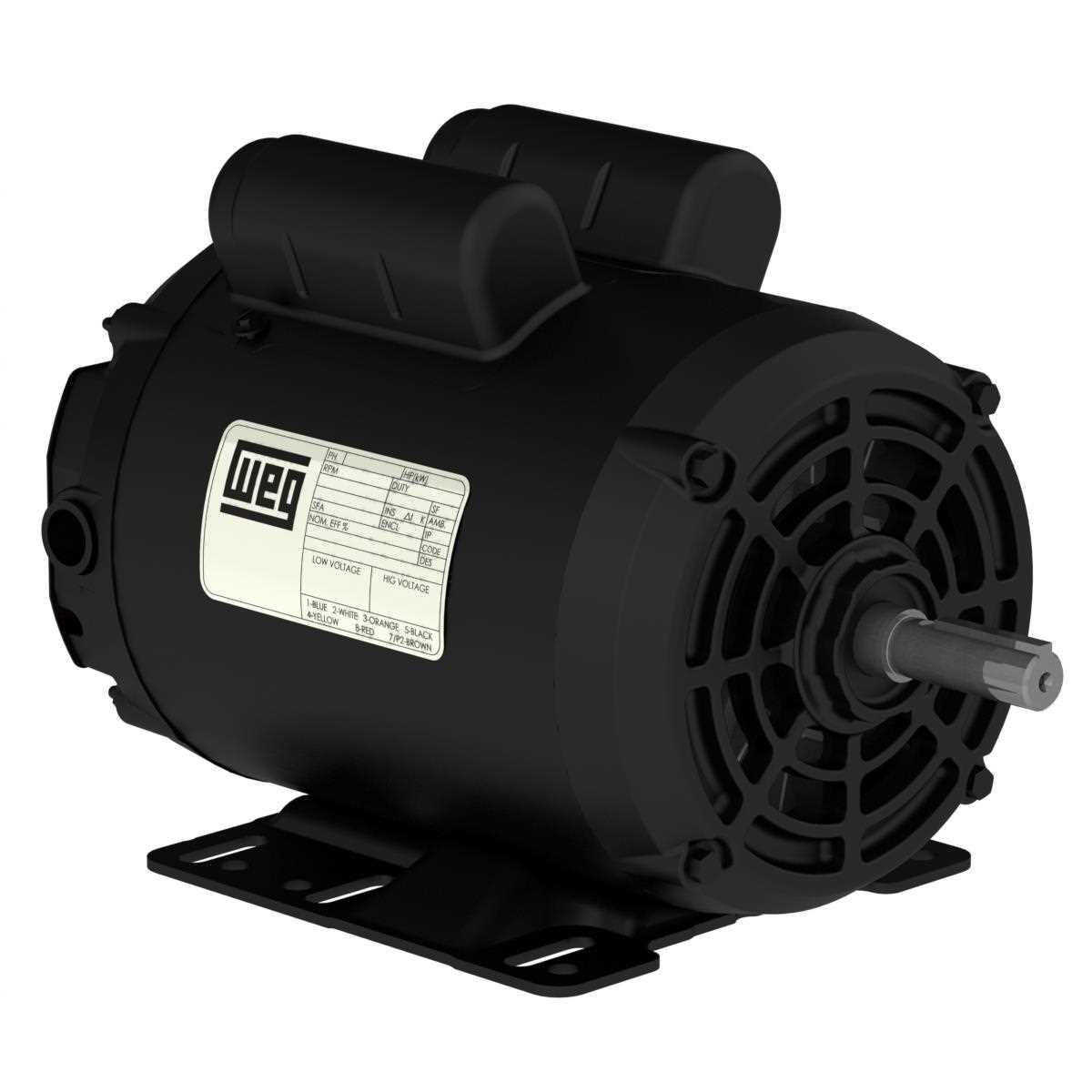

Weg - 00636OS1XCD182/4Y Motor especially conceived to meet the high torques required for application on air compressors. Ball bearings and manual thermal protection, among other electrical and mechanical characteristics, are available as standard feature in all the line and ensure long service life of the motor.
Additional Information
Catalog Number00636OS1XCD182/4Y
StandardNEMA MG-1
Frequency60 Hz
Voltage240 V
Number of poles2
Degree of ProtectionIP21
Synchronous speed3600 rpm
Output rating6.4 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
Frame182/4
Output6.4 HP (4.7 kW)
Rated speed3450 RPM
Slip0.0417
Rated voltage240 V
Rated current23.0 A
L. R. Amperes129 A
LRC5.6x(Code E)
No load current5.08 A
Rated torque9.74 ft.lb
Locked rotor torque1.9
Breakdown torque2
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0759 sq.ft.lb
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹CCW
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingOnly primer
Grounding LugsSingle
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Manual
Resilient BaseWithout
