category:
General Purpose
country_of_origin:
MX
manufacturer:
Weg
mpn:
06012ET3HRB404T-W22
subcategory:
Tefc Cast Iron
weight:
1145

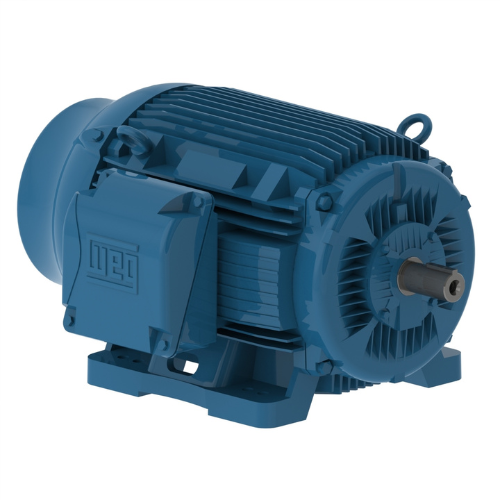

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number6012ET3HRB404T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating60 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame404/5T
Output60 HP (45 kW)
Rated speed1185 RPM
Slip0.0125
Rated voltage575 V
Rated current55.6 A
L. R. Amperes395 A
LRC7.1x(Code H)
No load current20.0 A
Rated torque266 ft.lb
Locked rotor torque2
Breakdown torque2.29
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)36.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box holeNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWith
Regreasing SystemAt Drive end and Non-drive end
