category:
General Purpose
country_of_origin:
MX
manufacturer:
Weg
mpn:
10018ET3G405TF3-W22
subcategory:
Tefc Cast Iron
weight:
1167
Product Description

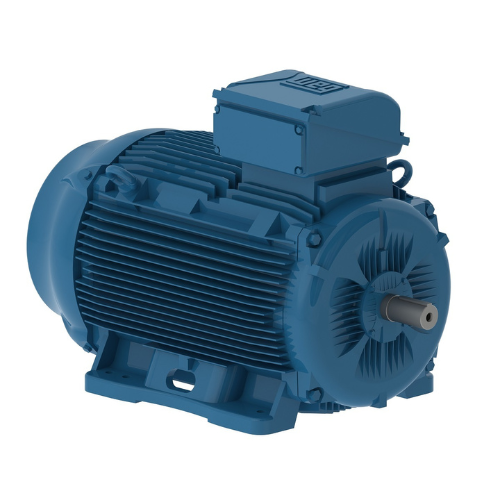

Weg - 10018ET3G405TF3-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0018ET3G405TF3-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating100 HP
MountingF-3
FlangeWithout
Terminal box¹Top
EnclosureIC411 - TEFC
Frame404/5T
Output100 HP (75 kW)
Rated speed1780 RPM
Slip0.0111
Rated voltage460 V
Rated current113 A
L. R. Amperes825 A
LRC7.3x(Code H)
No load current38.0 A
Rated torque295 ft.lb
Locked rotor torque2.4
Breakdown torque2.6
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)29.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box holeNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
