category:
General Purpose
manufacturer:
Weg
mpn:
00156ET3E143T-W22S
subcategory:
Tefc Cast Iron
weight:
41.9

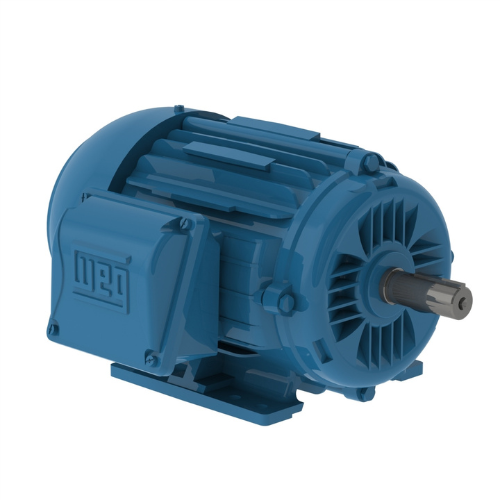

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0156ET3E143T-W22S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame143T
Output1.5 HP (1.1 kW)
Rated speed3480 RPM
Slip0.0333
Rated voltage230/460 V
Rated current3.92/1.96 A
L. R. Amperes34.9/17.4 A
LRC8.9x(Code L)
No load current1.66/0.830 A
Rated torque2.26 ft.lb
Locked rotor torque3.1
Breakdown torque3.7
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)0.0470 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Shaft Locking DeviceWithout
