category:
Definite Purpose
country_of_origin:
MX
manufacturer:
Weg
mpn:
70036OT3G5010S-RF
subcategory:
Refrigeration
weight:
4212
Product Description

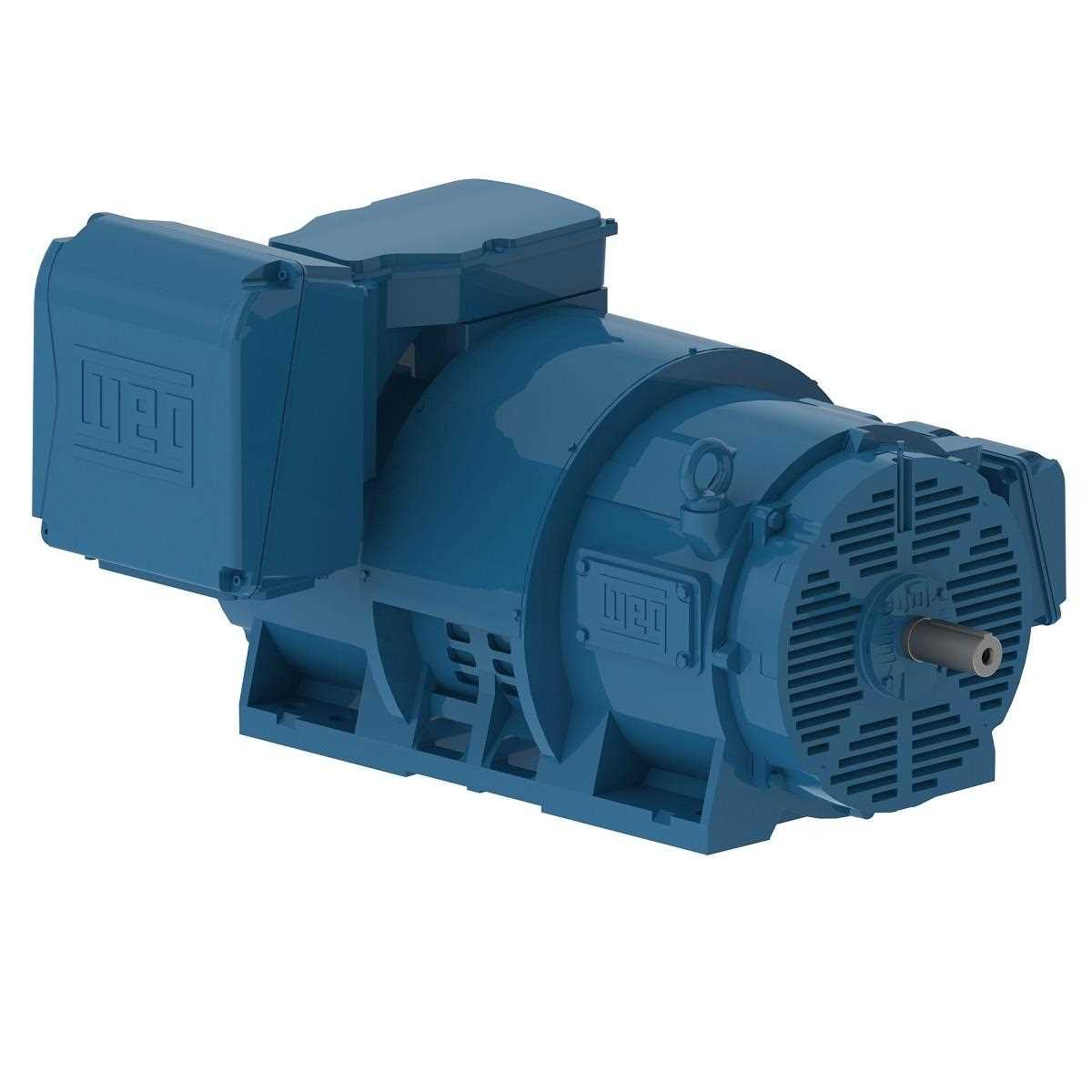

Weg - 70036OT3G5010S-RF W40 is a platform of Open Drip Proof motors (ODP) designed for industrial application in order to have a compact and light solution for the customer. The platform was designed to meet the market requirements of optimized and rugged motors, complying with international standard dimensions, safety and performance requirements.
Additional Information
Catalog Number70036OT3G5010S-RF
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles2
Degree of ProtectionIP23
Synchronous speed3600 rpm
Output rating700 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC01 - ODP
Frame5010/11TS
Output700 HP (515 kW)
Rated speed3578 RPM
Slip0.0061
Rated voltage460 V
Rated current760 A
L. R. Amperes6080 A
LRC8.0x(Code H)
No load current205 A
Rated torque1030 ft.lb
Locked rotor torque2
Breakdown torque2.8
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)78.5 sq.ft.lb
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²86.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 4"
Terminal BlockWithout
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsTriple
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Bolt MaterialCarbon Steel
Space Heater Voltage110-127/200-240 V
