category:
General Purpose
country_of_origin:
TW
manufacturer:
Weg
mpn:
01518ET3E254T-W22S
subcategory:
Tefc Cast Iron
weight:
280

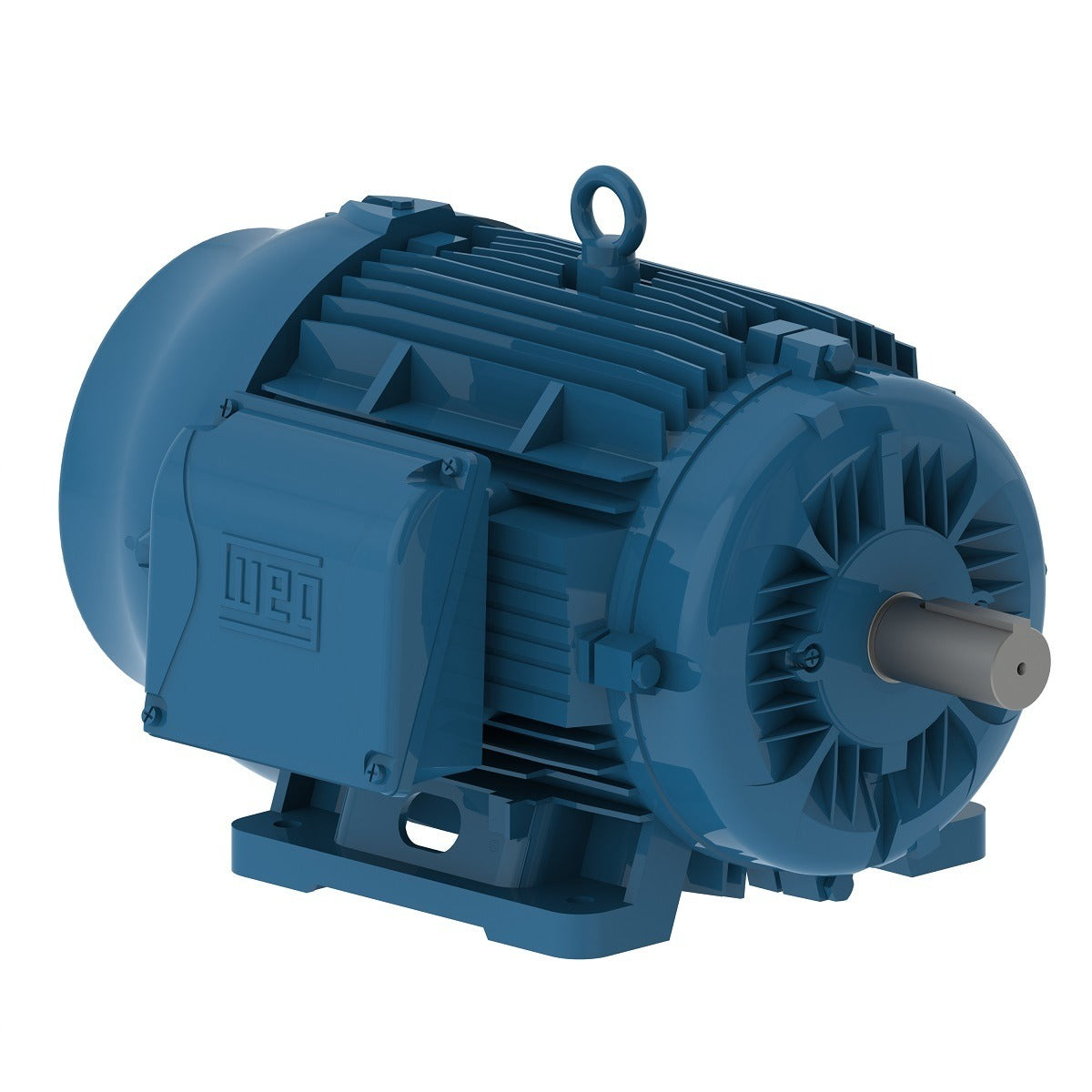

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number1518ET3E254T-W22S
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254T
Output15 HP (11 kW)
Rated speed1770 RPM
Slip0.0167
Rated voltage230/460 V
Rated current36.0/18.0 A
L. R. Amperes230/115 A
LRC6.4x(Code G)
No load current14.4/7.20 A
Rated torque44.5 ft.lb
Locked rotor torque2.2
Breakdown torque2.6
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)2.62 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
