Product Description

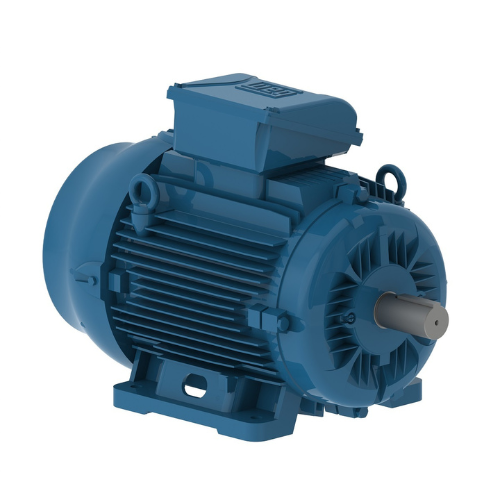

Weg - 02036ET3E256TF3-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number2036ET3E256TF3-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating20 HP
MountingF-3
FlangeWithout
Terminal box¹Top
EnclosureIC411 - TEFC
Frame256T
Output20 HP (15 kW)
Rated speed3525 RPM
Slip0.0208
Rated voltage230/460 V
Rated current46.4/23.2 A
L. R. Amperes283/142 A
LRC6.1x(Code G)
No load current13.0/6.50 A
Rated torque29.8 ft.lb
Locked rotor torque2
Breakdown torque2.4
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)1.54 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²72.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
