General Purpose
manufacturer:
Weg
mpn:
00536ET3E184TF3-W22
subcategory:
Tefc Cast Iron
weight:
93.7

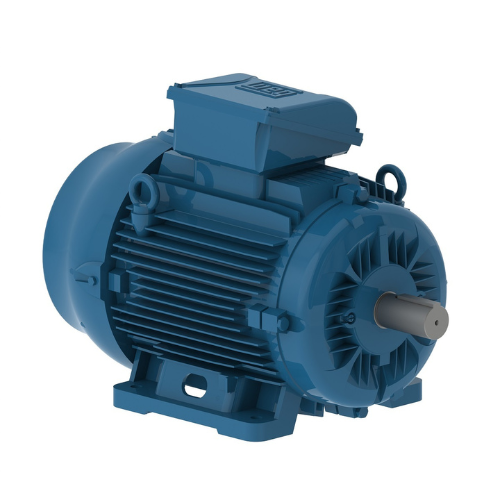

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0536ET3E184TF3-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 RPM
Output rating5 HP
MountingF-3
FlangeWithout
Terminal box¹Top
EnclosureIC411 - TEFC
Frame184T
Output5 HP (3.7 kW)
Rated speed3485 RPM
Slip0.0319
Rated voltage230/460 V
Rated current11.8/5.90 A
L. R. Amperes89.7/44.8 A
LRC7.6x(Code J)
No load current4.00/2.00 A
Rated torque7.53 ft.lb
Locked rotor torque2.29
Breakdown torque3.5
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)0.2233 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²66.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Shaft Locking DeviceWithout
