category:
Severe Duty
country_of_origin:
MX
manufacturer:
Weg
mpn:
00112ET3PCT145T-W22
subcategory:
Cooling Tower
weight:
54.5
Product Description

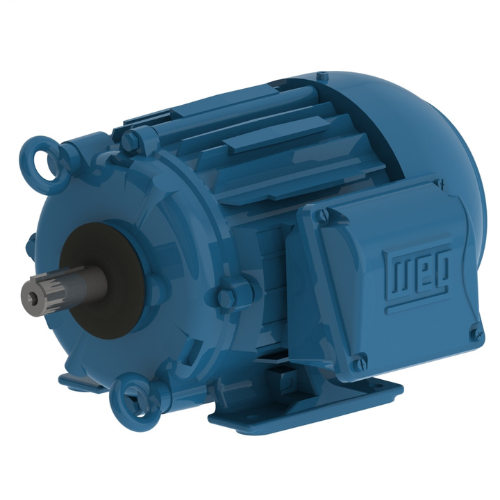

Weg - 00112ET3PCT145T-W22 These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number0112ET3PCT145T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage200 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating1 HP
MountingF-2
FlangeWithout
Terminal box¹Right position
EnclosureIC411 - TEFC
Frame143/5T
Output1 HP (0.75 kW)
Rated speed1160 RPM
Slip0.0333
Rated voltage200 V
Rated current3.98 A
L. R. Amperes24.7 A
LRC6.2x(Code K)
No load current2.53 A
Rated torque4.53 ft.lb
Locked rotor torque2.6
Breakdown torque3
Locked rotor time50s (cold) 28s (hot)
Moment of inertia (J)0.1595 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²50.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
