Product details
category: Severe Duty
manufacturer: Weg
mpn: 00318AT3HCT182T-W22
subcategory: Cooling Tower
weight: 89.5

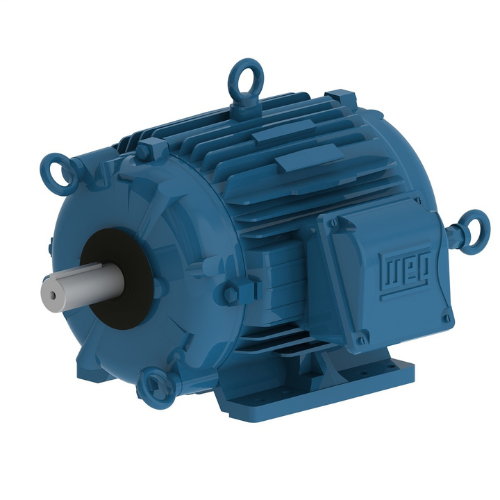

These TEFC and TEAO motors are built according to NEMA standards and designed for operation in 100% humidity and the most corrosive environments.
Additional Information
Catalog Number0318AT3HCT182T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating3 HP
MountingF-2
FlangeWithout
Terminal box¹Right position
EnclosureIC410 - TEAO
Frame182T
Output3 HP (2.2 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage575 V
Rated current3.13 A
L. R. Amperes25.3 A
LRC8.1x(Code K)
No load current1.60 A
Rated torque8.95 ft.lb
Locked rotor torque2.29
Breakdown torque3.4
Locked rotor time41s (cold) 23s (hot)
Moment of inertia (J)0.3401 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
