category:
General Purpose
country_of_origin:
MX
manufacturer:
Weg
mpn:
00118ET3V143TC-W22
subcategory:
Tefc Cast Iron
weight:
47.1

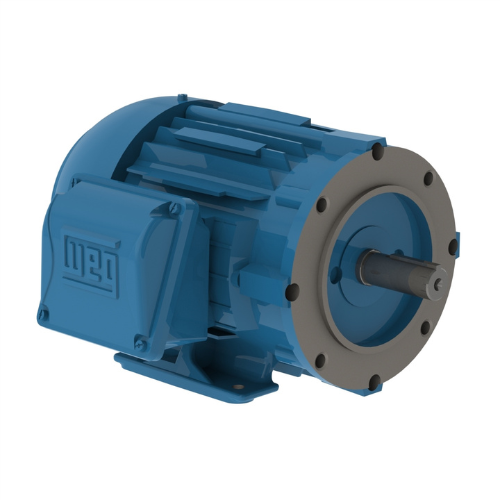

Catalog Number:0118ET3V143TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage200/400 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating1 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame143/5TC
Output1 HP (0.75 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage200/400 V
Rated current3.38/1.69 A
L. R. Amperes29.1/14.5 A
LRC8.6x(Code M)
No load current2.16/1.08 A
Rated torque2.98 ft.lb
Locked rotor torque2.9
Breakdown torque3.5
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)0.1172 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²51.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Shaft Locking DeviceWithout
