Product details
category: General Purpose
manufacturer: Weg
mpn: 00518ET3EID184TC-W22
subcategory: Tefc Cast Iron
weight: 105

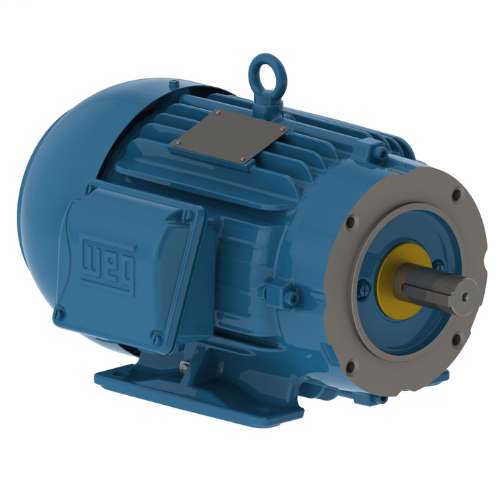

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0518ET3EID184TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame182/4TC
Output5 HP (3.7 kW)
Rated speed1755 RPM
Slip0.025
Rated voltage230/460 V
Rated current12.9/6.45 A
L. R. Amperes96.7/48.4 A
LRC7.5x(Code J)
No load current6.40/3.20 A
Rated torque15.0 ft.lb
Locked rotor torque2.29
Breakdown torque3.2
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.4003 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialCast Iron
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Shaft Locking DeviceWithout
