category:
General Purpose
manufacturer:
Weg
mpn:
00718ET3EID213TC-W22
subcategory:
Tefc Cast Iron
weight:
173
Product Description

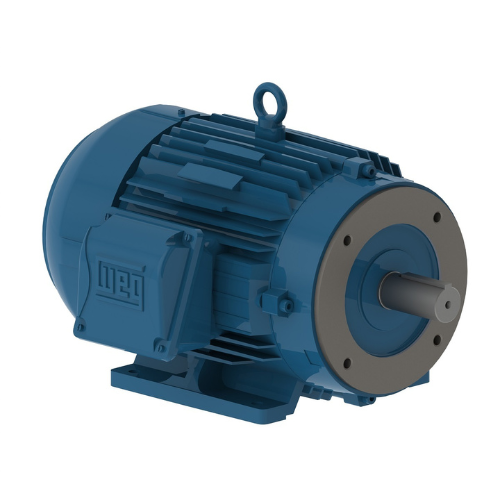

Weg - 00718ET3EID213TC-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0718ET3EID213TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating7.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output7.5 HP (5.5 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage230/460 V
Rated current18.4/9.18 A
L. R. Amperes130/65.2 A
LRC7.1x(Code H)
No load current8.80/4.40 A
Rated torque22.3 ft.lb
Locked rotor torque2.2
Breakdown torque3.1
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)1.34 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialCast Iron
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Shaft Locking DeviceWithout
