category:
Severe Duty
manufacturer:
Weg
mpn:
10009ST3HIE445T-W22
subcategory:
Ieee 841
weight:
1769

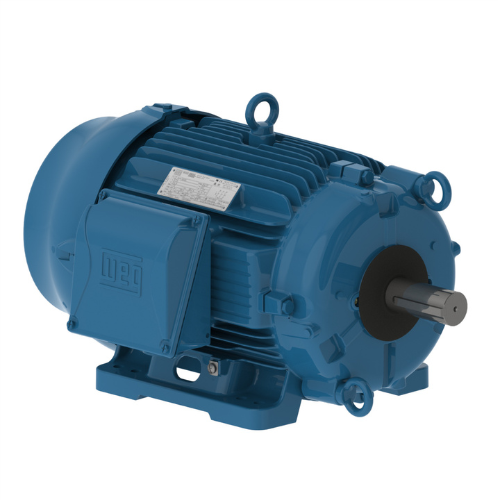

The W22 IEEE 841 motors were especially designed to operate in petrochemical and chemical industries. The motor has cast iron frame, flexible mounting, solid and whole feet, low noise levels, anticorrosive internal coating and high efficiency.
Additional Information
Catalog Number0009ST3HIE445T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles8
Degree of ProtectionIP55
Synchronous speed900 RPM
Output rating100 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame444/5T
Output100 HP (75 kW)
Rated speed890 RPM
Slip0.0111
Rated voltage575 V
Rated current102 A
L. R. Amperes610 A
LRC6.0x(Code G)
No load current44.8 A
Rated torque590 ft.lb
Locked rotor torque1.9
Breakdown torque2.2
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)87.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²63.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialConductive Plastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWithout
Regreasing SystemExtended in Stainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
