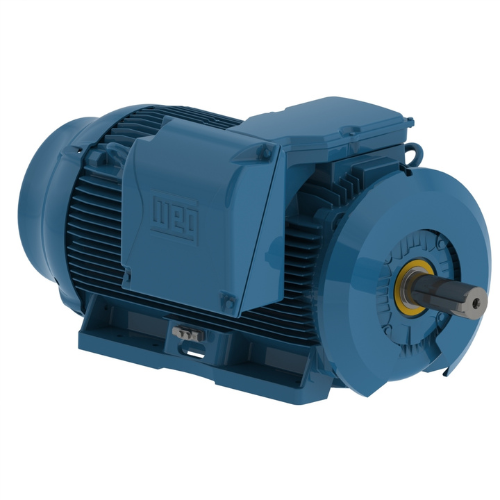

Weg Motors 12970107 W22 IEEE 841 NEMA Premium Efficiency 200 HP 8P L447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted-20009ST3HIE449T-W22

Weg Motors 12970107 W22 IEEE 841 NEMA Premium Efficiency 200 HP 8P L447/9T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted-20009ST3HIE449T-W22

Dropship

Get it by Tue, Dec 24 - Sun, Dec 29

SKU SKU:kpi004-20009ST3HIE449T-W22

Regular price $44,193.38 USD
Regular price Sale price $44,193.38 USD
Sale Sold out
Shipping calculated at checkout.
 More payment options
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Severe Duty
manufacturer: Weg
mpn: 20009ST3HIE449T-W22
subcategory: Ieee 841
weight: 3491

Product Description

Weg - 20009ST3HIE449T-W22 The W22 IEEE841 motors are designed for the petrochemical and chemical industries. They have rugged construction and long service life, for the most demanding industrial applications.

Additional Information

Catalog Number0009ST3HIE449T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles8
Degree of ProtectionIP55
Synchronous speed900 RPM
Output rating200 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
FrameL447/9T
Output200 HP (150 kW)
Rated speed891 RPM
Slip0.01
Rated voltage575 V
Rated current194 A
L. R. Amperes1181 A
LRC6.1x(Code G)
No load current72.0 A
Rated torque1180 ft.lb
Locked rotor torque1.9
Breakdown torque2.1
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)255 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²64.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialBronze
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWithout
Regreasing SystemExtended in Stainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
