category:
General Purpose
country_of_origin:
MX
manufacturer:
Weg
mpn:
25018ET3Q447TSC-W22
subcategory:
Tefc Cast Iron
weight:
2635

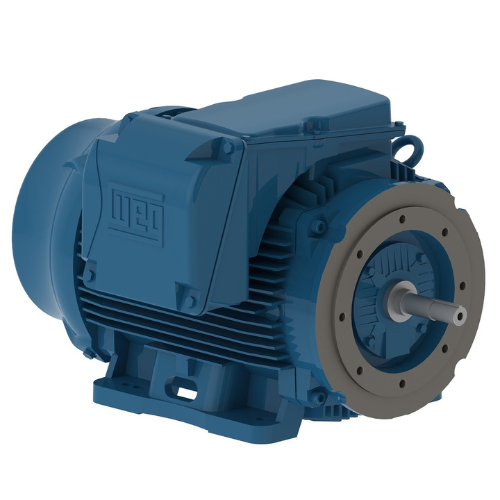

With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number5018ET3Q447TSC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating250 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame447/9TSC
Output250 HP (185 kW)
Rated speed1780 RPM
Slip0.0111
Rated voltage460 V
Rated current281 A
L. R. Amperes1827 A
LRC6.5x(Code G)
No load current85.0 A
Rated torque738 ft.lb
Locked rotor torque2.29
Breakdown torque2.29
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)89.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²75.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
