category:
Pump Motors
manufacturer:
Weg
mpn:
01018ET3E215TC-SG
subcategory:
Aegis Inside
weight:
141
Product Description

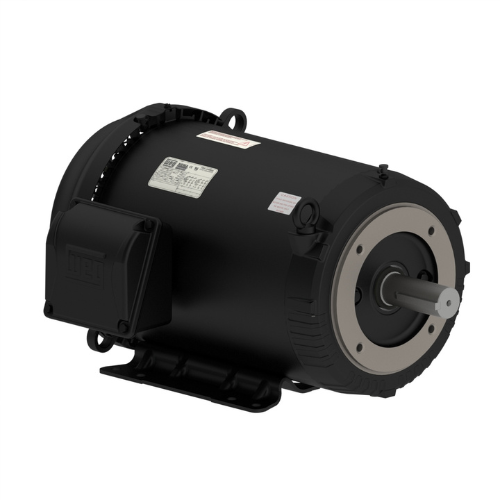

Weg - 01018ET3E215TC-SG W01 is a Rolled Steel motor that is perfect for applications where performance, robustness and light-weight are required in an all-one solution.
Additional Information
Catalog Number1018ET3E215TC-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of Protection9
Synchronous speed1800 RPM
Output rating10 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5TC
Output10 HP (7.5 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage230/460 V
Rated current24.4/12.2 A
L. R. Amperes171/85.4 A
LRC7.0x(Code H)
No load current11.1/5.54 A
Rated torque29.8 ft.lb
Locked rotor torque2.5
Breakdown torque3
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)1.07 sq.ft.lb
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²60.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
