category:
Pump Motors
manufacturer:
Weg
mpn:
01036OT3E213TC-SG
subcategory:
Aegis Inside
weight:
126
Product Description

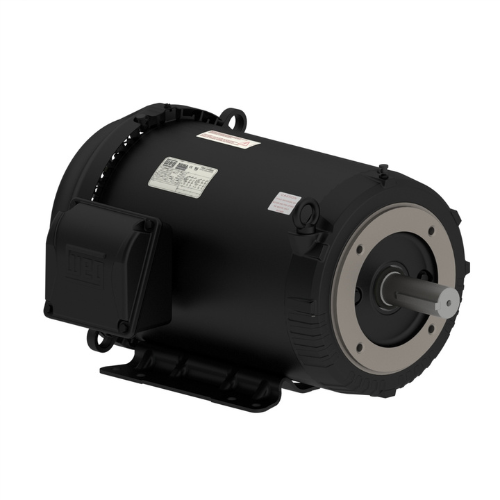

Weg - 01036OT3E213TC-SG
Catalog Number:1036OT3E213TC-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of Protection9
Synchronous speed3600 RPM
Output rating10 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC01 - ODP
Frame213/5TC
Output10 HP (7.5 kW)
Rated speed3535 RPM
Slip0.0181
Rated voltage230/460 V
Rated current24.0/12.0 A
L. R. Amperes163/81.6 A
LRC6.8x(Code H)
No load current9.32/4.66 A
Rated torque14.9 ft.lb
Locked rotor torque2
Breakdown torque2.8
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)0.4651 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²66.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
