category:
Pump Motors
manufacturer:
Weg
mpn:
01536OT3E215TC-SG
subcategory:
Aegis Inside
weight:
142
Product Description

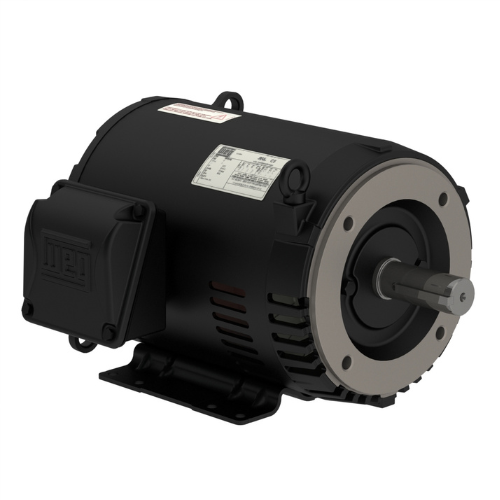

Weg - 01536OT3E215TC-SG
Catalog Number:1536OT3E215TC-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles2
Degree of Protection9
Synchronous speed3600 RPM
Output rating15 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC01 - ODP
Frame213/5TC
Output15 HP (11 kW)
Rated speed3535 RPM
Slip0.0181
Rated voltage230/460 V
Rated current34.4/17.2 A
L. R. Amperes234/117 A
LRC6.8x(Code G)
No load current12.3/6.17 A
Rated torque22.3 ft.lb
Locked rotor torque2.1
Breakdown torque2.8
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.5512 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²66.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.377"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
