category:
Farm Duty
manufacturer:
Weg
mpn:
00136AS3EAF56Z-S
subcategory:
Aeration Fan
weight:
23.4
Product Description

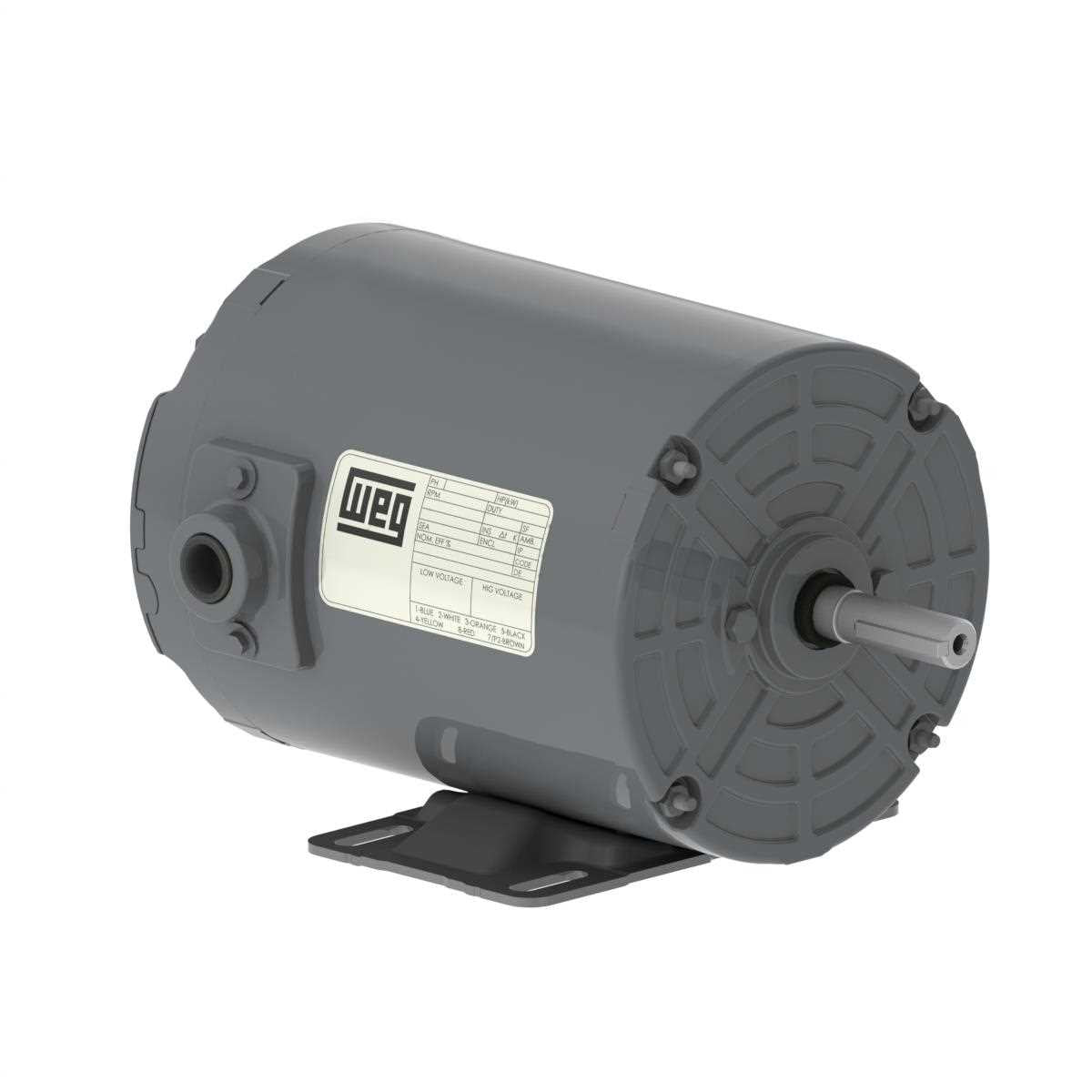

Weg - 00136AS3EAF56Z-S
Catalog Number:00136AS3EAF56Z-S
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame56Z
Output1 HP (0.75 kW)
Rated speed3480 RPM
Slip0.0333
Rated voltage208-230/460 V
Rated current3.34-3.03/1.51 A
L. R. Amperes24.0-21.8/10.9 A
LRC7.2x(Code K)
No load current0.000-1.20/0.600 A
Rated torque1.51 ft.lb
Locked rotor torque2.4
Breakdown torque2.9
Locked rotor time43s (cold) 24s (hot)
Moment of inertia (J)0.0641 sq.ft.lb
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialCarbon Steel
Resilient BaseWithout
