category:
Farm Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00236AP3EAF143TZ-S
subcategory:
Aeration Fan
weight:
35.7
Product Description

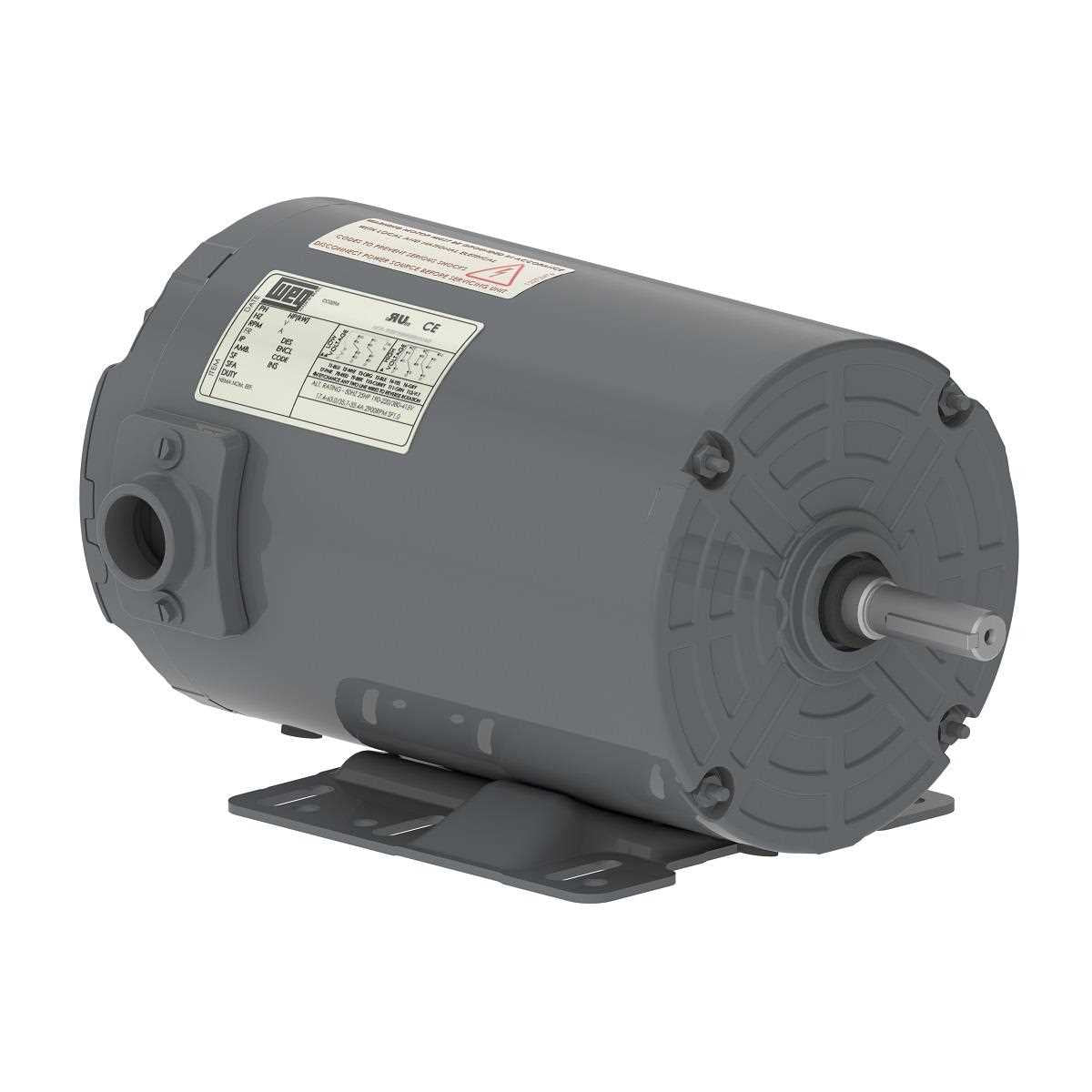

Weg - 00236AP3EAF143TZ-S
Catalog Number:00236AP3EAF143TZ-S
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame143/5TZ
Output2 HP (1.5 kW)
Rated speed3500 RPM
Slip0.0278
Rated voltage208-230/460 V
Rated current5.64-5.10/2.55 A
L. R. Amperes47.9-43.3/21.7 A
LRC8.5x(Code K)
No load current1.94-2.25/1.12 A
Rated torque3.00 ft.lb
Locked rotor torque2.8
Breakdown torque3.5
Locked rotor time25s (cold) 14s (hot)
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialCarbon Steel
Resilient BaseWithout
