category:
Farm Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00336AP3EAF145TZ-S
subcategory:
Aeration Fan
weight:
44.1
Product Description

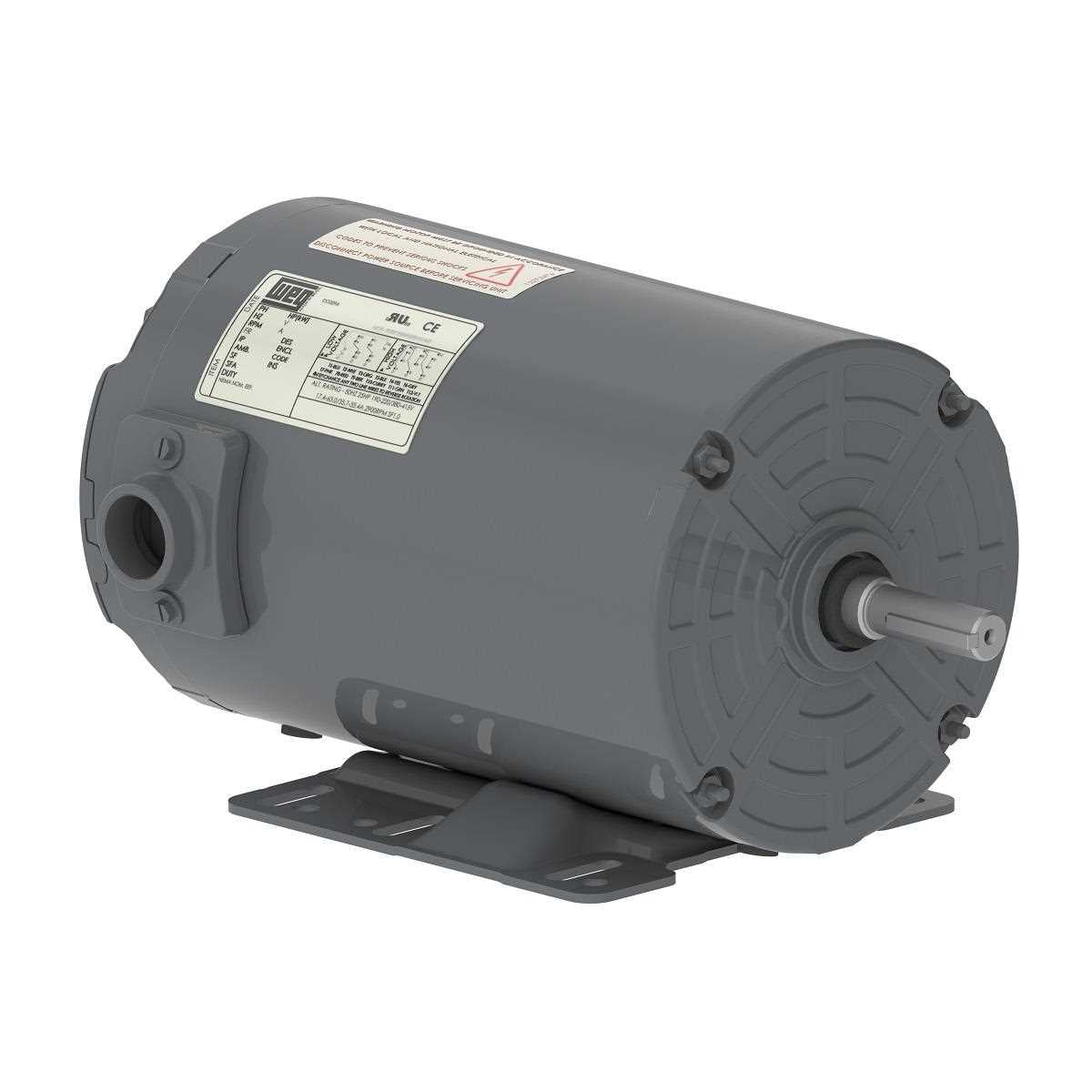

Weg - 00336AP3EAF145TZ-S
Catalog Number:00336AP3EAF145TZ-S
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460//190-220/380-415 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating3 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame143/5TZ
Output3 HP (2.2 kW)
Rated speed3480 RPM
Slip0.0333
Rated voltage208-230/460 V
Rated current7.85-7.10/3.55 A
L. R. Amperes65.9-59.6/29.8 A
LRC8.4x(Code J)
No load current2.24-2.60/1.30 A
Rated torque4.53 ft.lb
Locked rotor torque2.7
Breakdown torque3.3
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.1400 sq.ft.lb
DesignA
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity9
Bolt MaterialCarbon Steel
Resilient BaseWithout
