category:
Pump Motors
manufacturer:
Weg
mpn:
00158OT3E145TC-SG
subcategory:
Aegis Inside
weight:
42.6
Product Description

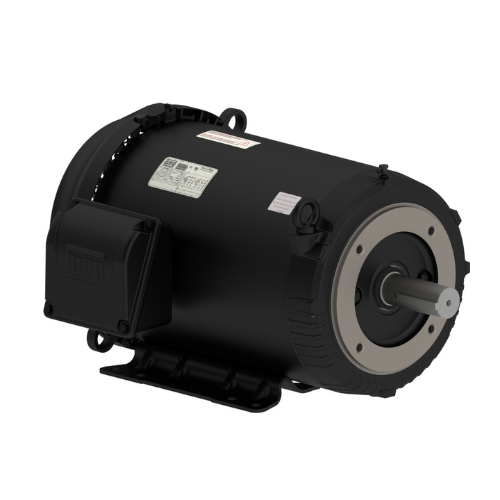

Weg - 00158OT3E145TC-SG
Catalog Number:0158OT3E145TC-SG
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//190-220/380-415 V
Number of poles4
Degree of Protection9
Synchronous speed1800 RPM
Output rating1.5 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC01 - ODP
Frame143/5TC
Output1.5 HP (1.1 kW)
Rated speed1760 RPM
Slip0.0222
Rated voltage230/460 V
Rated current4.14/2.07 A
L. R. Amperes36.0/18.0 A
LRC8.7x(Code L)
No load current2.40/1.20 A
Rated torque4.48 ft.lb
Locked rotor torque2.8
Breakdown torque3.3
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)0.1426 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box hole1.118"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Drip Cover1/2 Key
Overload protector (phenolic)Without
Connection Cables QuantityWithout overload protector
Bolt MaterialCarbon Steel
Resilient BaseWithout
