category:
Pump Motors
manufacturer:
Weg
mpn:
15018ET3G445TC-W22G
subcategory:
Aegis Inside
weight:
1824
Product Description

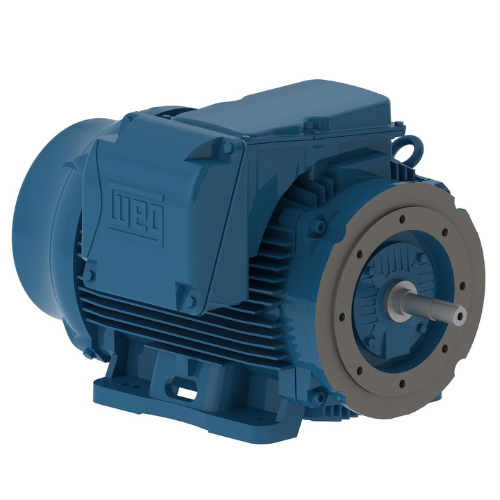

Weg - 15018ET3G445TC-W22G Available with Internal Shaft Grounding Ring“ AEGIS
Additional Information
Catalog Number5018ET3G445TC-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage460 V
Number of poles4
Degree of Protection12
Synchronous speed1800 RPM
Output rating150 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame444/5TC
Output150 HP (110 kW)
Rated speed1780 RPM
Slip0.0111
Rated voltage460 V
Rated current170 A
L. R. Amperes1122 A
LRC6.6x(Code G)
No load current58.0 A
Rated torque443 ft.lb
Locked rotor torque2
Breakdown torque2.5
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)66.7 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²73.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Resilient BaseWithout
