category:
Farm Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00136AS1RAF56Z-S
subcategory:
Poultry Fan
weight:
28
Product Description

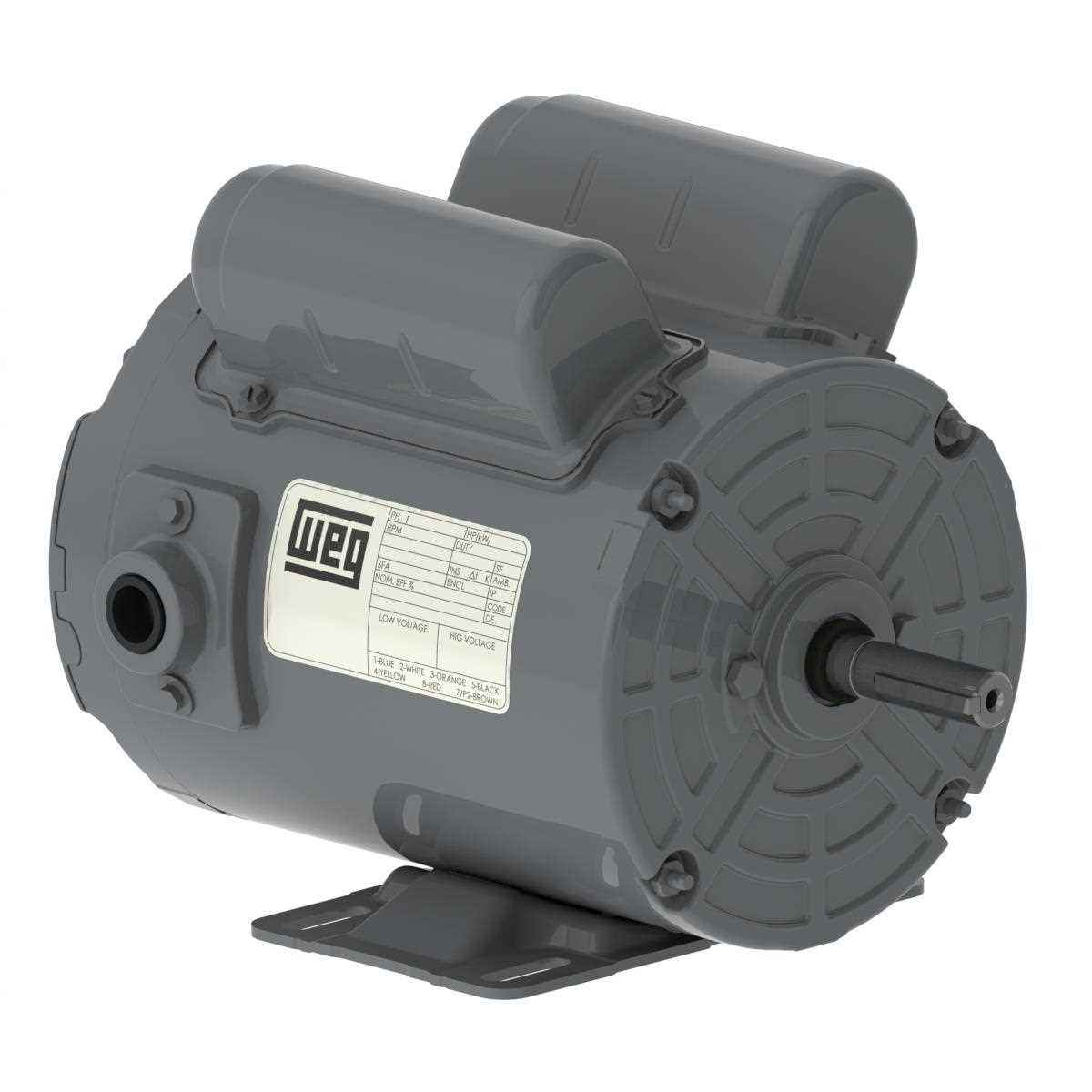

Weg - 00136AS1RAF56Z-S
Catalog Number:00136AS1RAF56Z-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame56
Output1 HP (0.75 kW)
Rated speed3500 RPM
Slip0.0278
Rated voltage115/208-230 V
Rated current10.1/5.64-5.06 A
L. R. Amperes85.0/47.4-42.5 A
LRC8.4x(Code L)
No load current5.50/2.37-2.75 A
Rated torque1.50 ft.lb
Locked rotor torque2.8
Breakdown torque2.8
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0472 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.15 (1.00 @ 208V)
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²68.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1/2"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
