category:
Farm Duty
country_of_origin:
TW
manufacturer:
Weg
mpn:
00236AS1RAF143TZ-S
subcategory:
Aeration Fan
weight:
35.3
Product Description

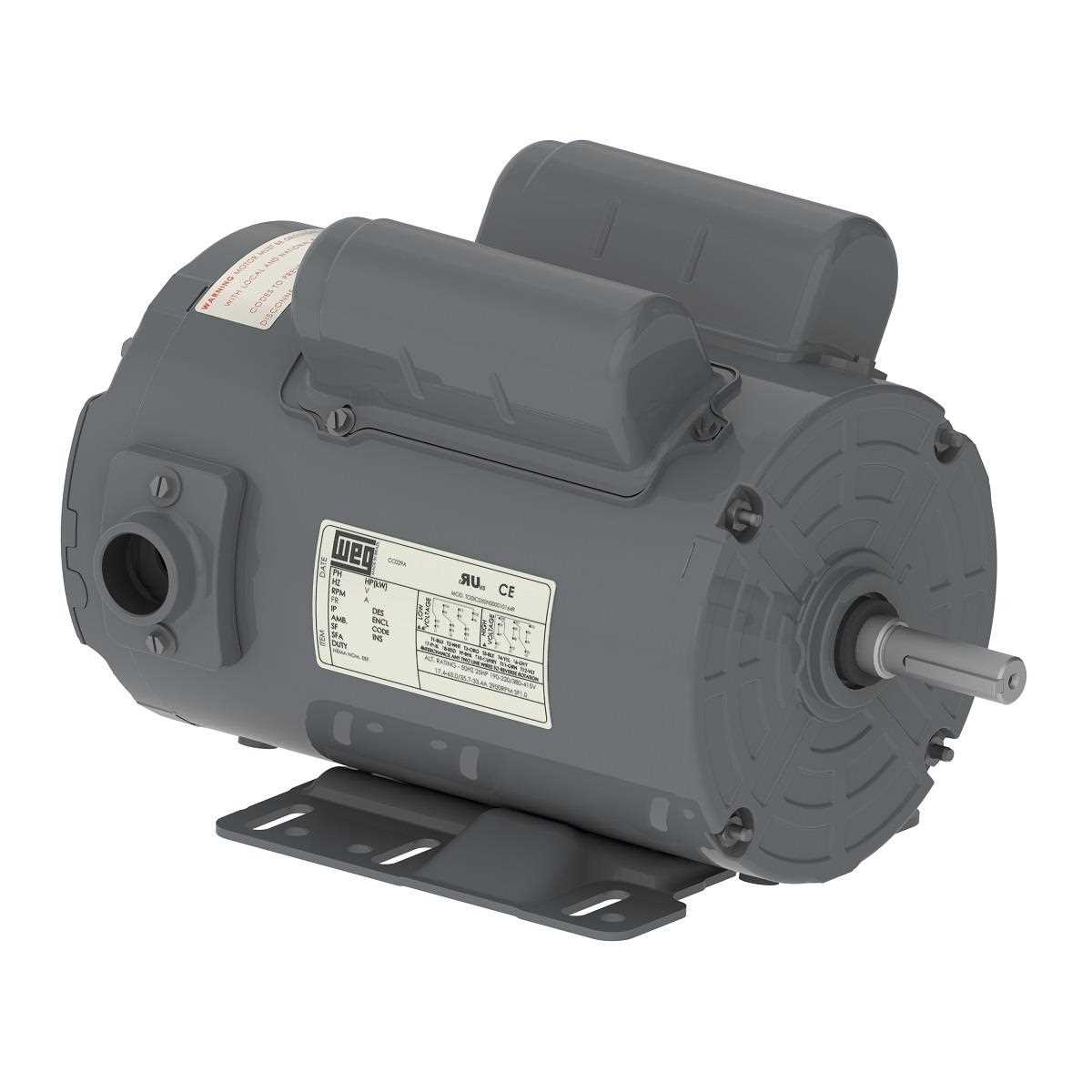

Weg - 00236AS1RAF143TZ-S
Catalog Number:00236AS1RAF143TZ-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles2
Degree of ProtectionIP55
Synchronous speed3600 rpm
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame143/5T
Output2 HP (1.5 kW)
Rated speed3495 RPM
Slip0.0292
Rated voltage115/208-230 V
Rated current17.5/9.62-8.73 A
L. R. Amperes137/75.0-68.1 A
LRC7.8x(Code J)
No load current5.00/0.000-2.50 A
Rated torque3.01 ft.lb
Locked rotor torque2.2
Breakdown torque2.5
Locked rotor time10s (cold) 6s (hot)
Moment of inertia (J)0.0712 sq.ft.lb
DesignL
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 7031 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Automatic
Bolt MaterialCarbon Steel
Resilient BaseWithout
