category:
General Purpose
manufacturer:
Weg
mpn:
01018ET3HR215TC-W22
subcategory:
Tefc Cast Iron
weight:
175
Product Description

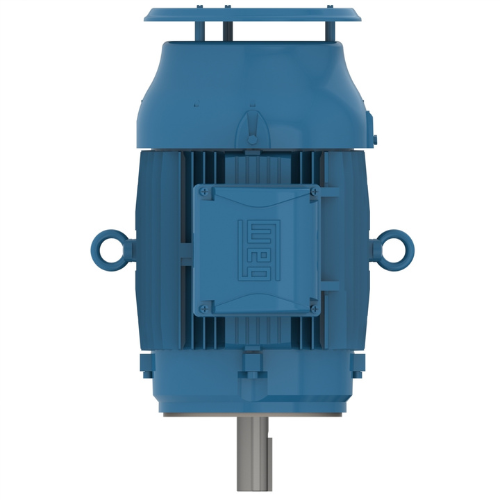

Weg - 01018ET3HR215TC-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number1018ET3HR215TC-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of ProtectionIP55
Synchronous speed1800 RPM
Output rating10 HP
MountingW-6
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame215TC
Output10 HP (7.5 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage575 V
Rated current9.92 A
L. R. Amperes63.5 A
LRC6.4x(Code H)
No load current4.52 A
Rated torque29.8 ft.lb
Locked rotor torque2
Breakdown torque2.95
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)1.51 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
