category:
Definite Purpose
manufacturer:
Weg
mpn:
.7536OS1BCDW56-S
subcategory:
Compressor Duty
weight:
20.3
Product Description

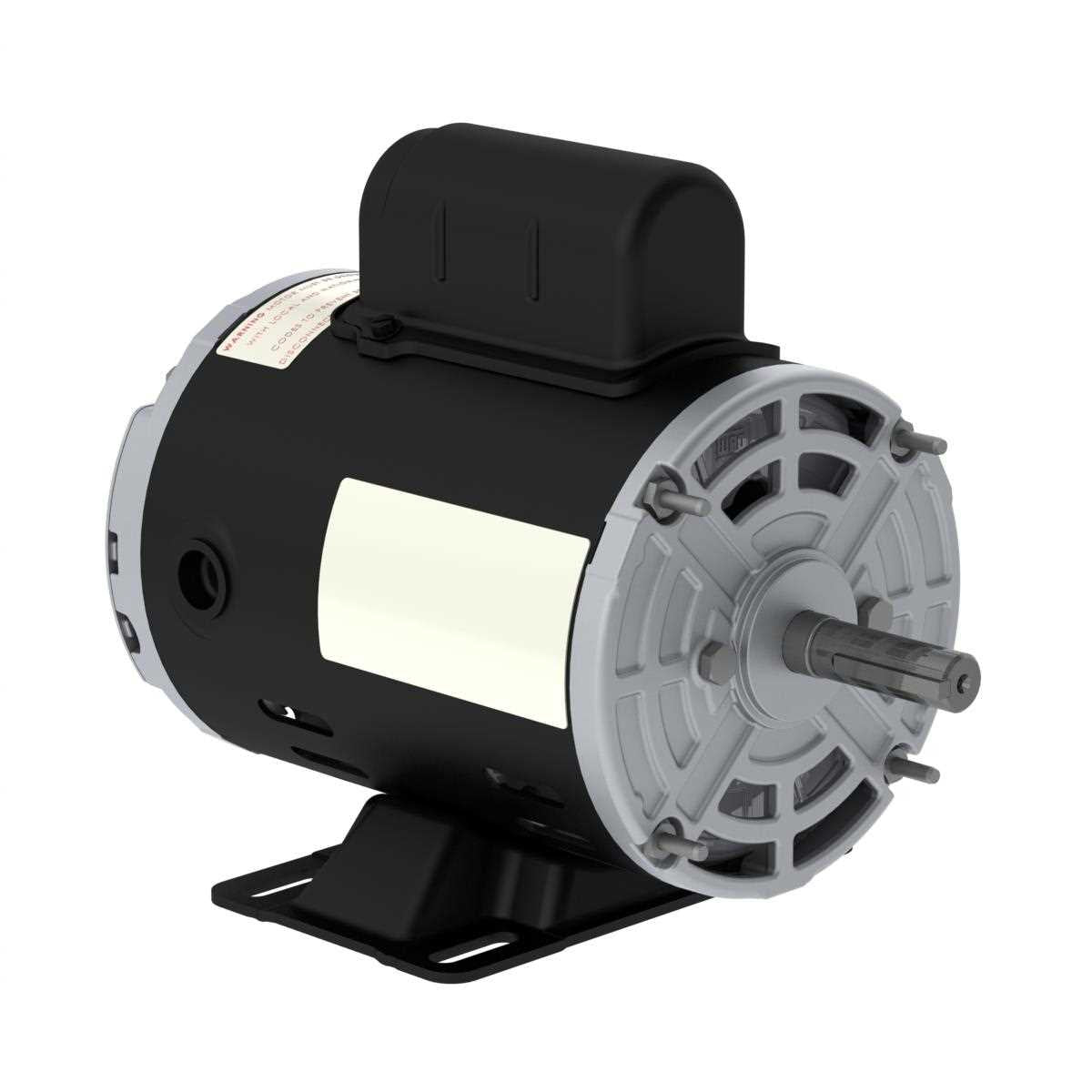

Weg - .7536OS1BCDW56-S
Catalog Number:.7536OS1BCDW56-S
StandardNEMA MG-1
Frequency60 Hz
Voltage115/208-230 V
Number of poles2
Synchronous speed3600 rpm
Output rating0.75 HP
MountingF-1
FlangeWithout
Terminal box¹Without Terminal Box
EnclosureIC01 - ODP
FrameW56
Output0.75 HP (0.550 kW)
Rated speed3470 RPM
Slip0.0361
Rated voltage115/208-230 V
Rated current9.14/4.70-4.57 A
L. R. Amperes59.4/30.6-29.7 A
LRC6.5x(Code L)
No load current6.00/2.59-3.00 A
Rated torque1.13 ft.lb
Locked rotor torque1.75
Breakdown torque2.25
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)0.0233 sq.ft.lb
DesignN
Insulation ClassF
Service factor1.00 (1.00 @ 208V)
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²56.0 dB(A)
Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingMunsell N 1 - Matte 207N (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodNot Balanced
Drip CoverWithout
Overload protector (phenolic)Manual
Bolt MaterialCarbon Steel
Resilient BaseWithout
