category:
General Purpose
manufacturer:
Weg
mpn:
25012ET3HKD580Z-W22
subcategory:
Tefc Cast Iron
weight:
3206

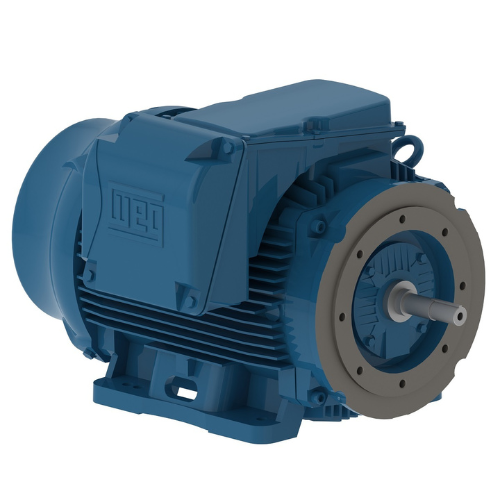

Designed to meet the demanding requirements of the rock crushing industry, the Crusher Duty motor comes standard with 4140 high strength shafts and heavy duty roller bearings. This motor complies or exceeds EISA 2016 requlations. Compliment your WEG Crusher Duty motor with our TPH2 Starter to complete your solution!
Additional Information
Catalog Number5012ET3HKD580Z-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating250 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame586/7TZ
Output250 HP (185 kW)
Rated speed1193 RPM
Slip0.0058
Rated voltage575 V
Rated current242 A
L. R. Amperes1476 A
LRC6.1x(Code G)
No load current105 A
Rated torque1100 ft.lb
Locked rotor torque2.1
Breakdown torque2.29
Locked rotor time54s (cold) 30s (hot)
Moment of inertia (J)226 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²77.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialAluminum
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWith
Winding thermal protectionThermostat - 2 wires 1 per phase 155°C
Regreasing SystemAt Drive end and Non-drive end
Space Heater Voltage200 - 240 V
