Product Description

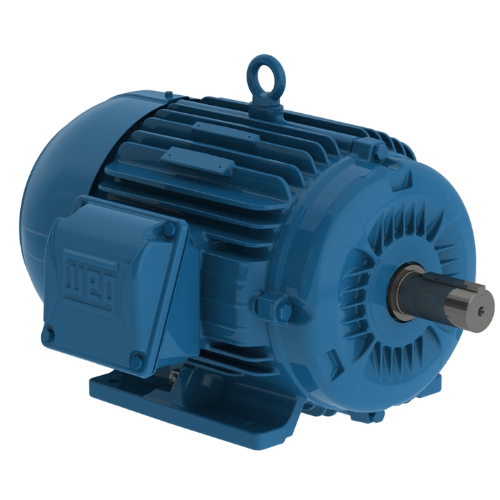

Weg - 00509ST3HIE254T-W22 With cast iron frame, flexible mounting, solid and whole feet, and lower noise levels and operating temperatures, the W22 motors are perfectly suitable for a great variety of industrial applications.
Additional Information
Catalog Number0509ST3HIE254T-W22
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles8
Degree of ProtectionIP55
Synchronous speed900 RPM
Output rating5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame254/6T
Output5 HP (3.7 kW)
Rated speed882 RPM
Slip0.02
Rated voltage575 V
Rated current6.06 A
L. R. Amperes32.1 A
LRC5.3x(Code H)
No load current3.60 A
Rated torque29.8 ft.lb
Locked rotor torque2.2
Breakdown torque2.5
Locked rotor time79s (cold) 44s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²54.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
DrainType T, Threaded
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingAccording to IEEE-841 (96h)
Fan materialConductive Plastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity3
Shaft Locking DeviceWithout
Regreasing SystemStainless Steel, at Drive end and Non-drive end
Bolt MaterialCarbon Steel
Joints SealMolykote
Foot flatness(0.005 pol) 0.127 mm
