category:
Air Handling
manufacturer:
Weg
mpn:
00109ET3EPM182/4Y-W2
subcategory:
Pad Mount
weight:
83.8
Product Description

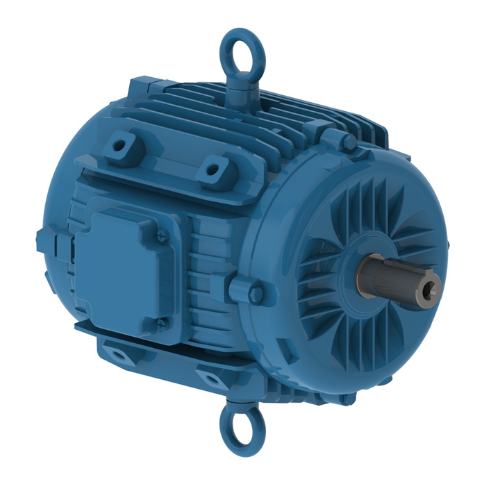

Weg - 00109ET3EPM182/4Y-W2 Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.
Additional Information
Catalog Number0109ET3EPM182/4Y-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles8
Degree of Protection9
Synchronous speed900 RPM
Output rating1 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame184YZ
Output1 HP (0.75 kW)
Rated speed875 RPM
Slip0.0278
Rated voltage208-230/460 V
Rated current5.10-4.61/2.31 A
L. R. Amperes30.6-27.7/13.9 A
LRC6.0x(Code M)
No load current0.000-3.40/1.70 A
Rated torque6.00 ft.lb
Locked rotor torque3
Breakdown torque3.5
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)0.3987 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
