category:
Pump Motors
manufacturer:
Weg
mpn:
00212ET3EPM182/4Y-W2
subcategory:
Aegis Inside
weight:
87.5
Product Description

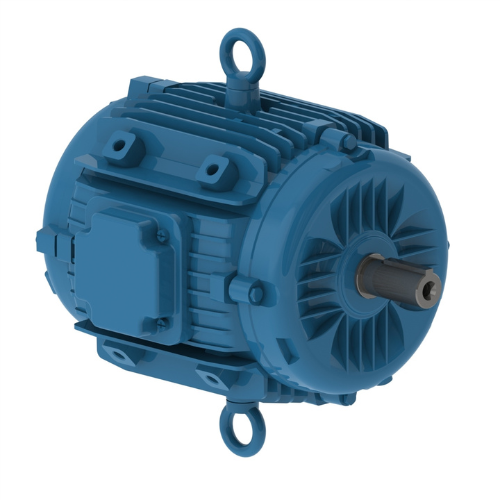

Weg - 00212ET3EPM182/4Y-W2 Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.
Additional Information
Catalog Number0212ET3EPM182/4Y-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles6
Degree of Protection9
Synchronous speed1200 RPM
Output rating2 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame184YZ
Output2 HP (1.5 kW)
Rated speed1165 RPM
Slip0.0292
Rated voltage208-230/460 V
Rated current7.13-6.45/3.22 A
L. R. Amperes53.5-48.4/24.2 A
LRC7.5x(Code L)
No load current0.000-4.50/2.25 A
Rated torque9.02 ft.lb
Locked rotor torque3
Breakdown torque3
Locked rotor time55s (cold) 31s (hot)
Moment of inertia (J)0.6217 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
