category:
Pump Motors
manufacturer:
Weg
mpn:
00152ET3EPM182/4Y-W2
subcategory:
Aegis Inside
weight:
94.8

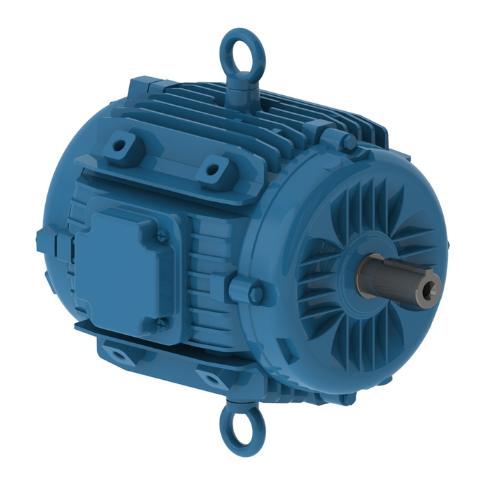

Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.
Additional Information
Catalog Number0152ET3EPM182/4Y-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles6
Degree of Protection9
Synchronous speed1200 RPM
Output rating1.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame184YZ
Output1.5 HP (1.1 kW)
Rated speed1170 RPM
Slip0.025
Rated voltage208-230/460 V
Rated current5.63-5.09/2.54 A
L. R. Amperes43.9-39.7/19.8 A
LRC7.8x(Code M)
No load current0.000-3.25/1.63 A
Rated torque6.73 ft.lb
Locked rotor torque3.2
Breakdown torque4
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)0.4888 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²52.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 3/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
