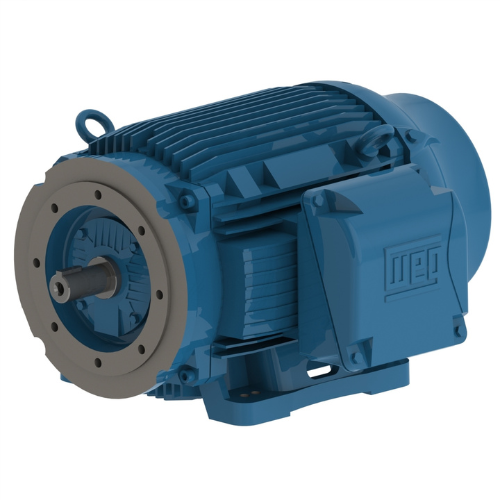

Weg Motors 13693141 W22 NEMA Premium Efficiency 125 HP 4P 444/5TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted-12518ET3E444TC-W22G

Weg Motors 13693141 W22 NEMA Premium Efficiency 125 HP 4P 444/5TC 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted-12518ET3E444TC-W22G

Dropship

Get it by Fri, Dec 13 - Wed, Dec 18

SKU SKU:kpi004-12518ET3E444TC-W22G

Regular price $13,016.08 USD
Regular price Sale price $13,016.08 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pump Motors
country_of_origin: TW
manufacturer: Weg
mpn: 12518ET3E444TC-W22G
subcategory: Aegis Inside
weight: 1593

Product Description

Weg - 12518ET3E444TC-W22G

Catalog Number:2518ET3E444TC-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage230/460//380 V
Number of poles4
Degree of Protection12
Synchronous speed1800 RPM
Output rating125 HP
MountingF-1
FlangeC
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame444/5TC
Output125 HP
Rated speed1780 RPM
Slip0.0111
Rated voltage230/460 V
Rated current278/139 A
L. R. Amperes1807/904 A
LRC6.5x(Code G)
No load current80.0/40.0 A
Rated torque369 ft.lb
Locked rotor torque2
Breakdown torque2.29
Locked rotor time48s (cold) 27s (hot)
Moment of inertia (J)57.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²73.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Main terminal box hole2xNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Resilient BaseWithout
