category:
Severe Duty
manufacturer:
Weg
mpn:
00312ET3HCT213TF1-W2
subcategory:
Cooling Tower
weight:
121
Product Description

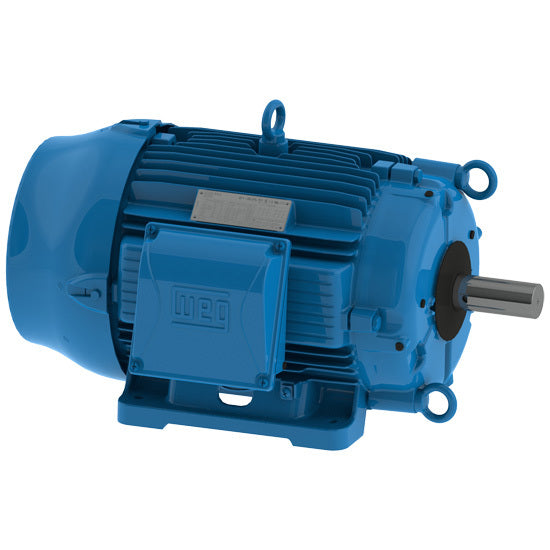

Weg - 00312ET3HCT213TF1-W2
Catalog Number:0312ET3HCT213TF1-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles6
Degree of ProtectionIP55
Synchronous speed1200 RPM
Output rating3 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213T
Output3 HP (2.2 kW)
Rated speed1175 RPM
Slip0.0208
Rated voltage575 V
Rated current3.53 A
L. R. Amperes24.7 A
LRC7.0x(Code K)
No load current2.20 A
Rated torque13.4 ft.lb
Locked rotor torque2
Breakdown torque2.8
Locked rotor time104s (cold) 58s (hot)
Moment of inertia (J)1.20 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²55.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingComplete (200h)
Fan materialPlastic
Bearing capNo-Without Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Shaft Locking DeviceWithout
Joints SealPermatex
Space Heater Voltage110-127/200-240 V
