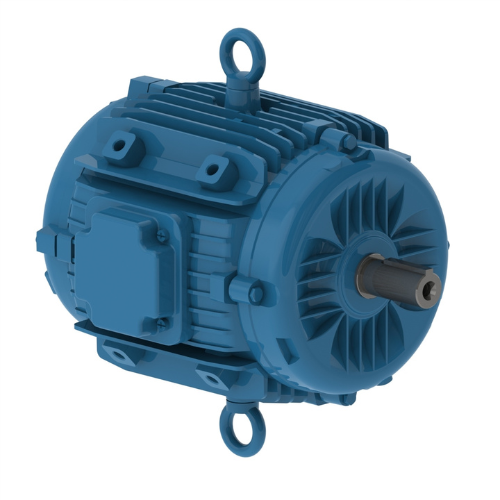

Weg Motors 13789894 W22 NEMA Premium Efficiency 15 HP 6P 286Y 3Ph 208-230/460 V 60 Hz IC410 - TEAO - Pad mounted-01512ET3EPM284/6Y-W2

Weg Motors 13789894 W22 NEMA Premium Efficiency 15 HP 6P 286Y 3Ph 208-230/460 V 60 Hz IC410 - TEAO - Pad mounted-01512ET3EPM284/6Y-W2

Dropship

Get it by Fri, Dec 13 - Wed, Dec 18

SKU SKU:kpi004-01512ET3EPM284/6Y-W2

Regular price $2,812.04 USD
Regular price Sale price $2,812.04 USD
Sale Sold out
Shipping calculated at checkout.
View full details
  • 30-day returns
  • Fast shipping
  • Secure payments
  • Over 300,000 products
category: Pump Motors
manufacturer: Weg
mpn: 01512ET3EPM284/6Y-W2
subcategory: Aegis Inside
weight: 379

Product Description

Weg - 01512ET3EPM284/6Y-W2 Specially designed for manufacturers of axial fans, the W22 Fan and Exhaust motors are compact and an excellent choice for the following applications: fans and exhausters, tunnels, subways, air conditioning systems, underground coal mines, shopping malls, supermarkets and other applications.

Additional Information

Catalog Number1512ET3EPM284/6Y-W2
StandardNEMA MG-1
Frequency60 Hz
Voltage208-230/460 V
Number of poles6
Degree of Protection12
Synchronous speed1200 RPM
Output rating15 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC410 - TEAO
Frame286Y
Output15 HP (11 kW)
Rated speed1175 RPM
Slip0.0208
Rated voltage208-230/460 V
Rated current39.6-35.8/17.9 A
L. R. Amperes253-229/115 A
LRC6.4x(Code G)
No load current0.000-15.0/7.50 A
Rated torque67.0 ft.lb
Locked rotor torque2.29
Breakdown torque2.7
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)7.85 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²59.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1 1/4"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Regreasing SystemAt Drive end and Non-drive end
Resilient BaseWithout
