category:
Pump Motors
manufacturer:
Weg
mpn:
00718ET3H213T-W22G
subcategory:
Aegis Inside
weight:
167
Product Description

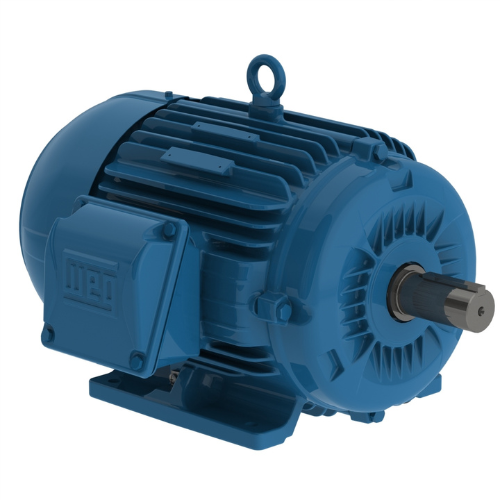

Weg - 00718ET3H213T-W22G Available with Internal Shaft Grounding Ring“ AEGIS
Additional Information
Catalog Number0718ET3H213T-W22G
StandardNEMA MG-1
Frequency60 Hz
Voltage575 V
Number of poles4
Degree of Protection6
Synchronous speed1800 RPM
Output rating7.5 HP
MountingF-1
FlangeWithout
Terminal box¹Left position
EnclosureIC411 - TEFC
Frame213/5T
Output7.5 HP (5.5 kW)
Rated speed1765 RPM
Slip0.0194
Rated voltage575 V
Rated current7.34 A
L. R. Amperes52.1 A
LRC7.1x(Code H)
No load current3.52 A
Rated torque22.3 ft.lb
Locked rotor torque2.2
Breakdown torque3.1
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)1.34 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20°C to +40°C
Altitude1000 m.a.s.l.
Rotation¹Both (CW and CCW)
Noise level²58.0 dB(A)
Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Main terminal box holeNPT 1"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 207A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialSteel
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing MethodIP55
Drip Cover1/2 Key
Connection Cables QuantityWithout overload protector
Shaft Locking DeviceWithout
Resilient BaseWithout
